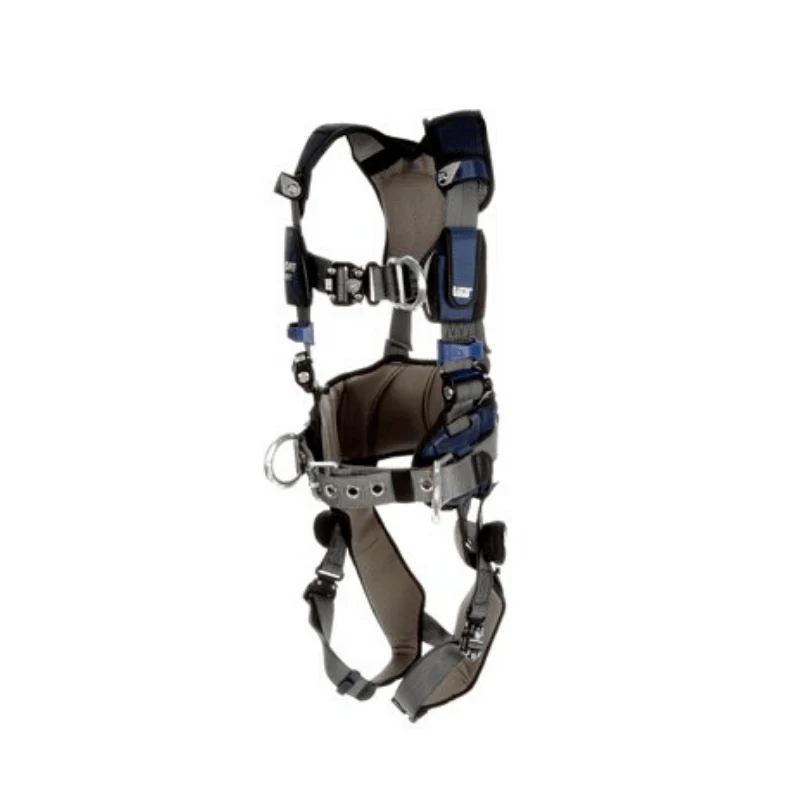

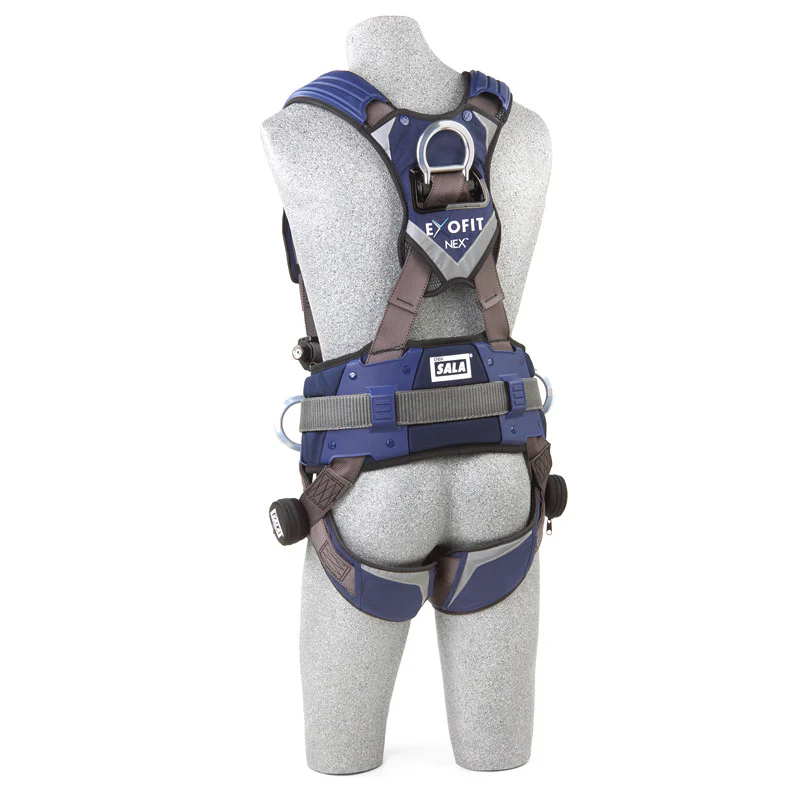

3M™ DBI-SALA® ExoFit NEX™ Plus Comfort Construction Style Positioning/Climbing Harness

The 3M™ DBI-SALA® ExoFit NEX™ Plus Comfort Construction Style Positioning/Climbing Harness has a versatile design that is perfect for those working in the construction industry. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features built-in shoulder, back and leg padding for enhanced worker comfort, a stand-up aluminum back D-ring, aluminum front D-ring, Dual Lock quick connect chest and leg connections, body belt/hip pad with aluminum side D-rings, a revolving vertical torso buckle, integrated trauma straps as well as a fixed dorsal D-ring that helps to maintain proper dorsal D-ring positioning, reducing the need for wearers to readjust the harness during the workday. This harness also includes an integrated easy-link SRL adapter that allows users to quickly and easily connect and disconnect their personal SRL. The ExoFit NEX™ Plus Comfort Construction Style Positioning/Climbing Harness includes all of the comfort, performance and time-saving features that hard working construction professionals can rely on for their positioning and climbing needs.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements. ExoFit NEX™ full-body harnesses provide the freedom and confidence for workers to perform at their maximum potential.

SPECIFICATIONS

Capacity: 420 lbs
Weight:
1140162 - 7.1 lbs
1140163- 7.17 lbs
1140164 - 7.27 lbs
1140165 - 7.41 lbs
1140166 - 7.52 lbs
1140167 - 7.65 lbs
Tensile Strength: 3600 lbs / ANSI
Body Belt: Yes
Subpelvic Strap: Yes
Chest Buckle Type: Dual Lock Quick Connect
Torso Buckle Type: Revolver™
Leg Buckle Type: Dual Lock Quick Connect
Chest Buckle Material: Zinc Plated Steel
Torso Buckle Material: Zinc Plated Steel
Leg Buckle Material: Zinc Plated Steel
Padding Location: Shoulder, Back, Hip, Leg
iSafe Equipped: Yes
Recommended Industry: Construction, Sub Applications, Military Maintenance, Repair and Operation (MRO), Mining, Oil & Gas, Transportation
Recommended Applications: Assembly, Blasting, Cleaning, Demolition, Electrical, Facility Maintenance, Grinding, Machine Operations, Painting, Remediation, Sanding
Standards: ANSI Z359.11, OSHA 1910.140, OSHA 1926.502

FEATURES

Integrated easy-link SRL adapter lets you quickly and easily connect and disconnect personal SRLs
Fixed dorsal D-ring helps maintain proper dorsal D-ring position and reduces the need to readjust during the workday
ANSI-compliant auto-resetting lanyard keepers for fast and easy parking of snap hooks and carabiners
Shoulder, back and leg padding for enhanced worker comfort
Stand-up aluminum back D-ring ensures fast, easy and secure connections to your fall arrest system
Revolving vertical torso buckle stores excess webbing, locking it in place and out of your way while maintaining an excellent fit
Integrated trauma straps provide an adjustable foot strap that helps reduce the effects of suspension trauma when deployed
Aluminum front D-ring
Body belt/hip pad with aluminum side D-rings
Dual lock quick connect chest and leg connections
Reflective material enhances visibility in low-light conditions

RESOURCES

9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA® ExoFit NEX™ Plus Full Body Harness Catalog

Instructions

Exofit & Exofit XP Full Body Harness Instructions

Certificates

1140162: Declaration of Conformity

1140163: Declaration of Conformity

1140164: Declaration of Conformity

1140165: Declaration of Conformity

1140166: Declaration of Conformity

1140167: Declaration of Conformity
