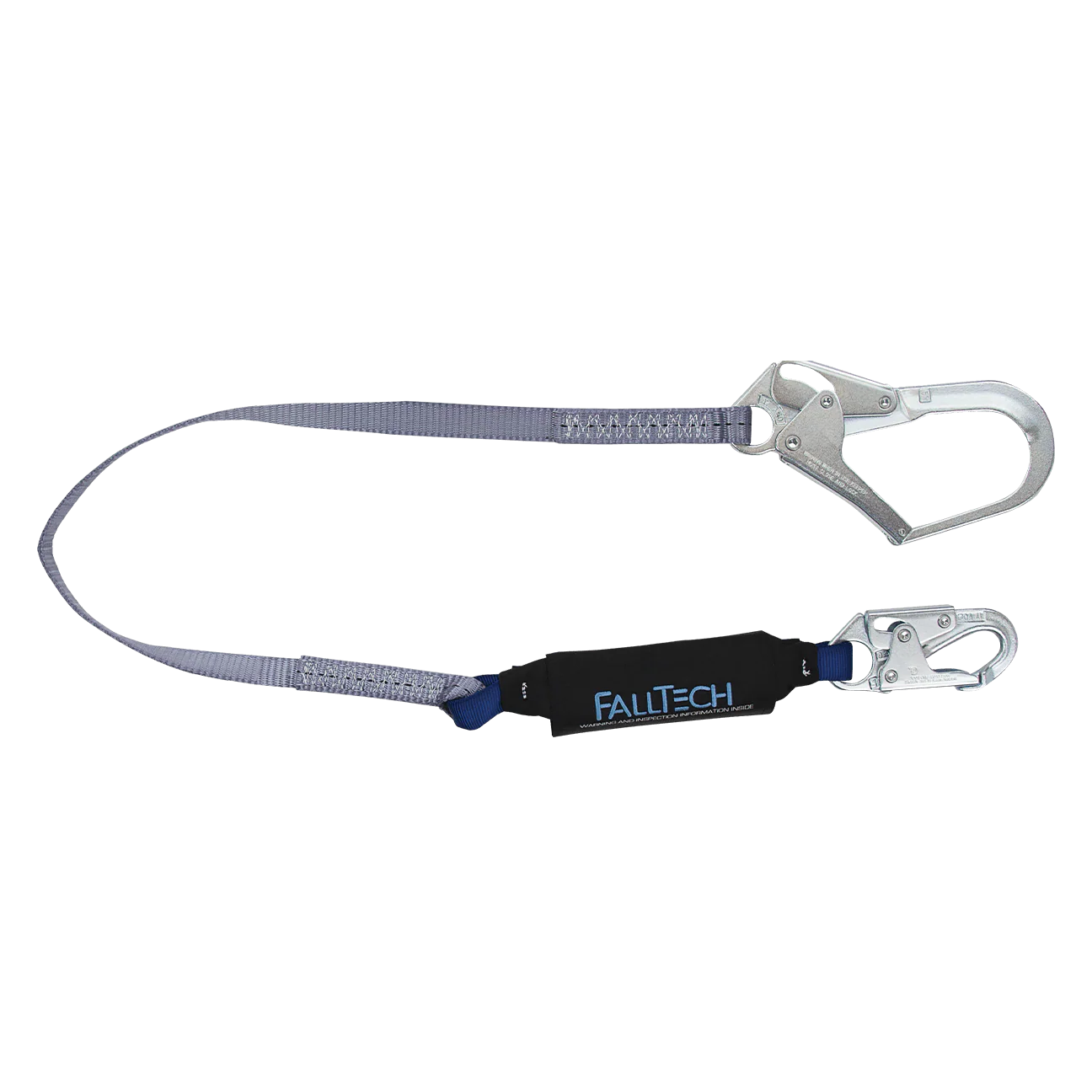

4' ViewPack® Energy Absorbing Lanyard, Single-leg with Steel Connectors - CSA
4' ViewPack® Energy Absorbing Lanyard, Single-leg with Steel Connectors - CSA
FEATURES
- Heavy-duty 1" polyester web construction throughout
- 4' length is ideally suited for applications where restricted fall clearances are present.
- Energy absorber features patented ViewPack® cover with inspection window
- ViewPack® cover also features WrapPack label protection
- Includes alloy steel snap hook for harness attachment and rebar hook for anchorage connection
- Rebar hook feature transverse load rated gate
- Complies with ANSI Z359.13-2013
MATERIAL SPECIFICATIONS
Webbing: Polyester; 5,000 lb min. static strength
Energy Absorber: Polyester tear-away
Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI Lanyard Class: 6' free fall
Max. Arrest Distance: 48"
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 82543 (ANSI Compliant)
- C82543 (CSA Compliant)
DOWNLOADS
Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)
COMPLIANT WITH:
ANSI Z359.13-2013
OSHA 1926.502 and 1910.66
CSA Z259.11-2017
$92.00
4' ViewPack® Energy Absorbing Lanyard, Single-leg with Steel Connectors - CSA—
$92.00
Description
4' ViewPack® Energy Absorbing Lanyard, Single-leg with Steel Connectors - CSA
FEATURES
- Heavy-duty 1" polyester web construction throughout
- 4' length is ideally suited for applications where restricted fall clearances are present.
- Energy absorber features patented ViewPack® cover with inspection window
- ViewPack® cover also features WrapPack label protection
- Includes alloy steel snap hook for harness attachment and rebar hook for anchorage connection
- Rebar hook feature transverse load rated gate
- Complies with ANSI Z359.13-2013
MATERIAL SPECIFICATIONS
Webbing: Polyester; 5,000 lb min. static strength
Energy Absorber: Polyester tear-away
Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI Lanyard Class: 6' free fall
Max. Arrest Distance: 48"
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 82543 (ANSI Compliant)
- C82543 (CSA Compliant)
DOWNLOADS
Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)
COMPLIANT WITH:
ANSI Z359.13-2013
OSHA 1926.502 and 1910.66
CSA Z259.11-2017
