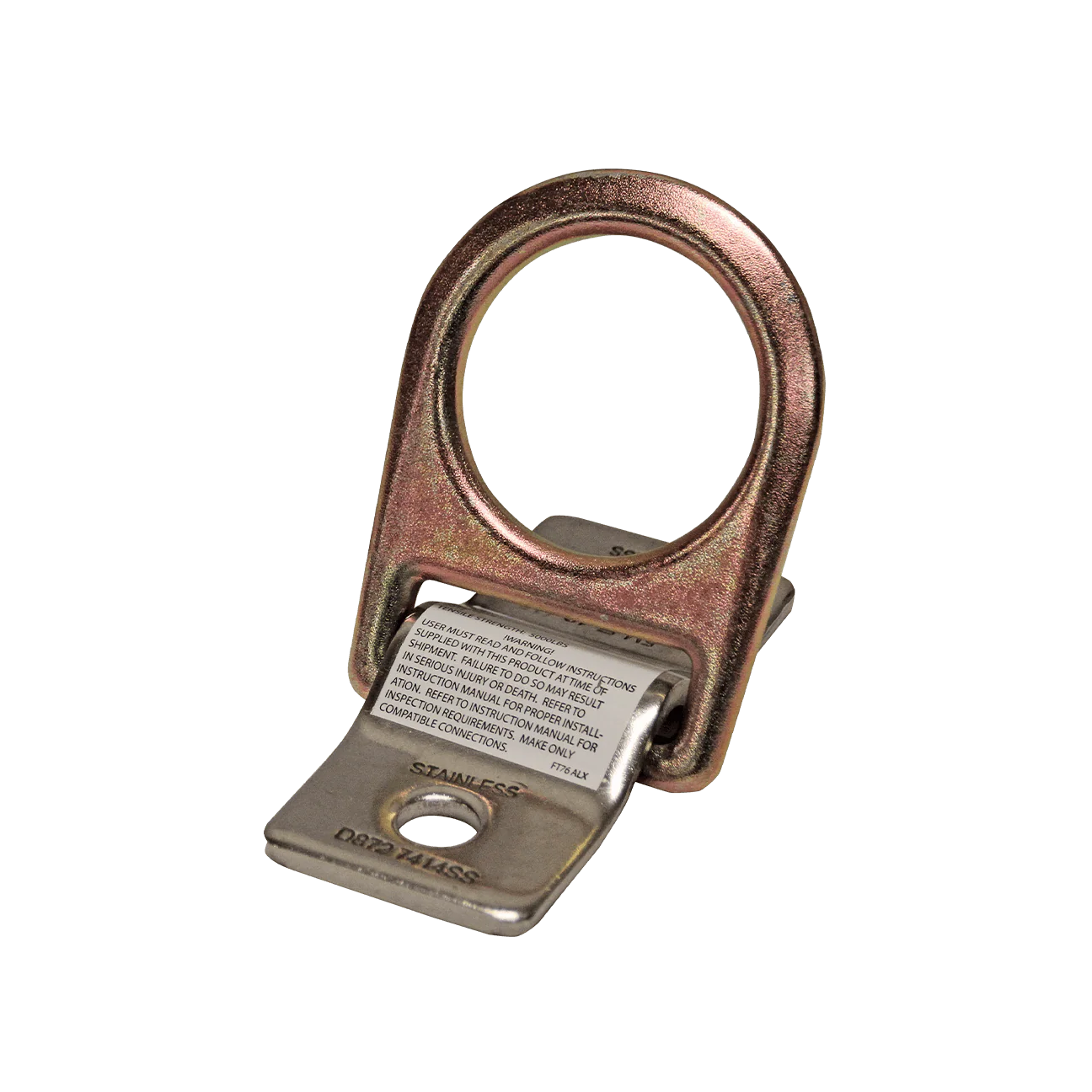

Bolt-on D-ring Anchor with Stainless Steel Installation Plate
Bolt-on D-ring Anchor with Stainless Steel Installation Plate
FEATURES
- Features 2" x 4-1/2" stainless steel anchoring plate and alloy steel D-ring
- 1/2" bolt holes require user-supplied fasteners for fixed position installation.
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
Installation Plate: Stainless steel
D-ring: Plated alloy; 5,000 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
$57.00
Bolt-on D-ring Anchor with Stainless Steel Installation Plate—
$57.00
Description
Bolt-on D-ring Anchor with Stainless Steel Installation Plate
FEATURES
- Features 2" x 4-1/2" stainless steel anchoring plate and alloy steel D-ring
- 1/2" bolt holes require user-supplied fasteners for fixed position installation.
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
Installation Plate: Stainless steel
D-ring: Plated alloy; 5,000 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
COMPLIANT WITH:
ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
