CM Screwlok Beam Clamps with Shackle
- DESCRIPTION
- SPECIFICATIONS
- FEATURES

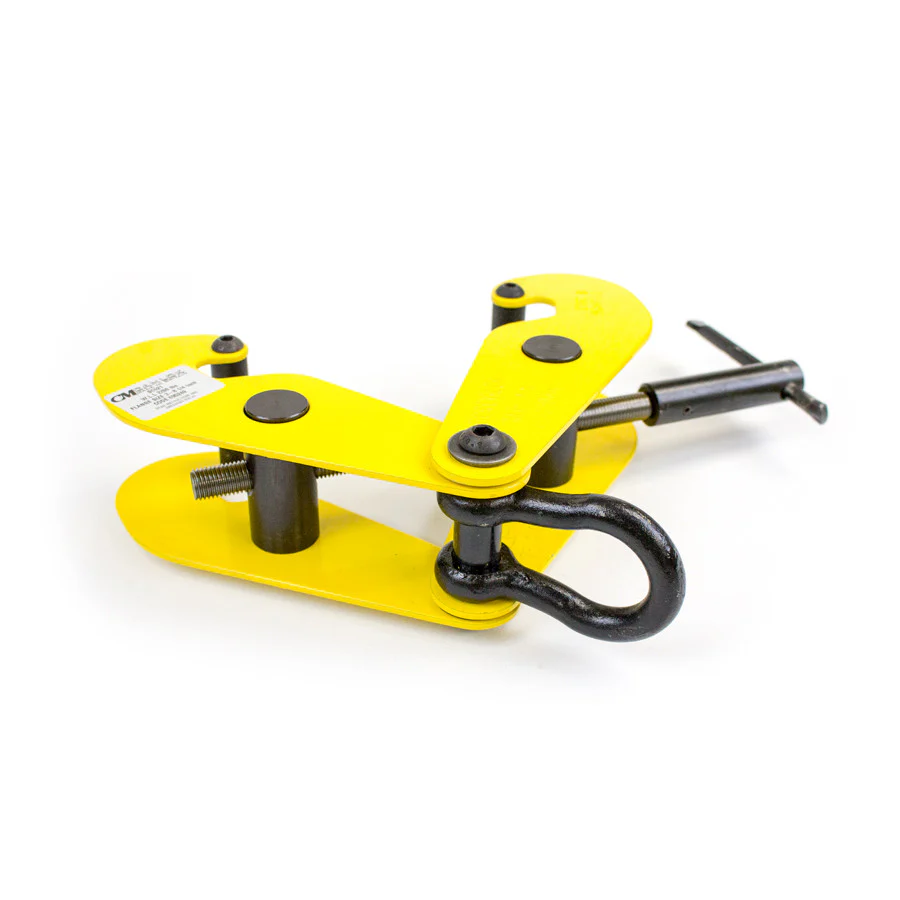

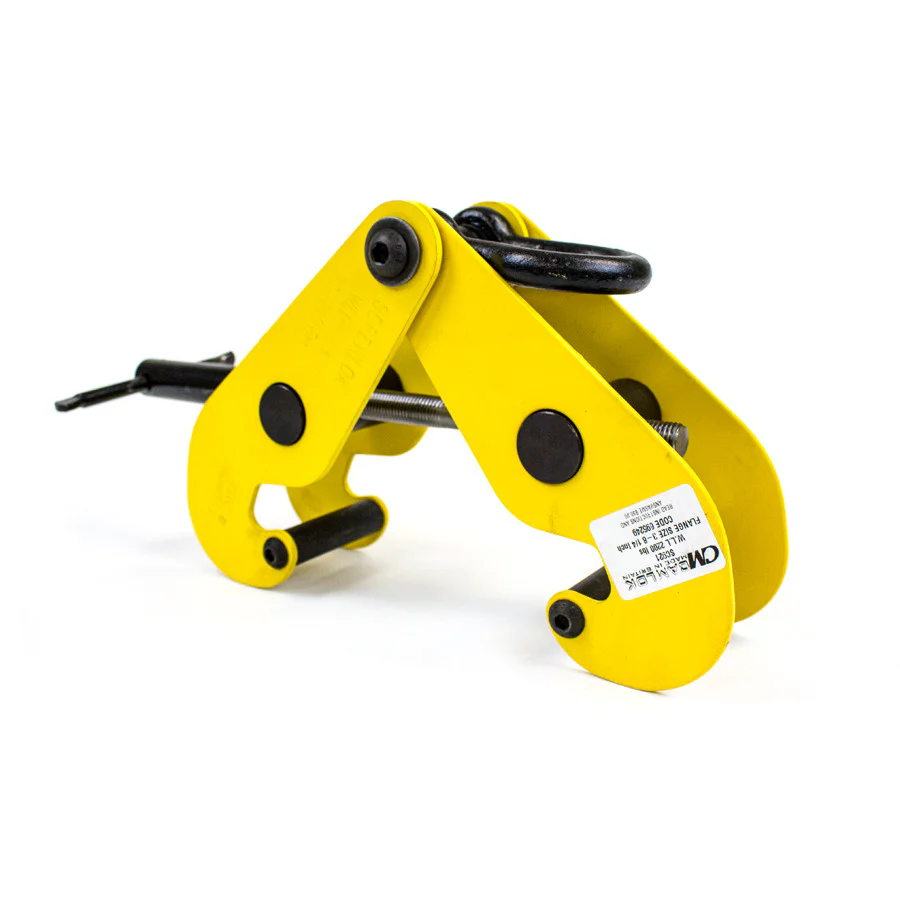

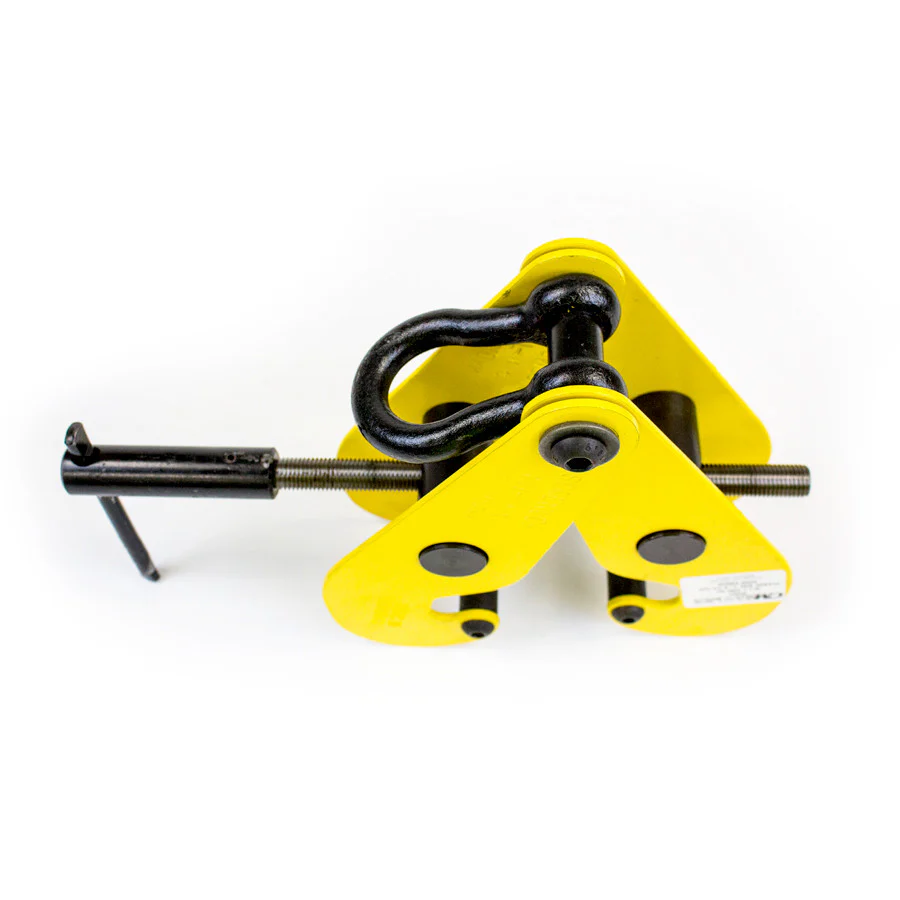

This product features the CM Screwlok Beam Clamp with an integrated shackle for load suspension. Beam clamps are easily attached to the lower flanges of steel beams and provide semi-permanent lifting points. CM’s screw-type mechanism makes installation efficient and simple, and their beam clamps can be used with manual or electric chain hoists.
As a Master Distributor of Columbus McKinnon products, Mountain Productions has tested, used, and stood behind the extensive CM entertainment technology inventory for years. Our working knowledge of CM chain hoists and rigging hardware allows us to provide not only the best products, but the knowledge to answer any question you may have. CM Screwlok Beam Clamps ship with a lifetime warranty, and are factory proof tested for quality assurance.
• Designed to fit flanges of most structural beams
• Act as a semi-permanent lifting point for use with manual or electric hoists
• Shackle incorporated for quick and easy component attachment
|
Screwlok Beam Clamp with Shackle |
|||||||||
|
Jaw Capacity (in.) |
Working Load |
Weight |
Product |
Dimensions (in) - View Schematic Above |
|||||
|
A |
B |
C |
D |
E |
F |
||||
|
3 to 8 1/4 |
2,200 |
11.0 |
SC921 |
12.625 |
12.125 |
1.750 |
8.250 |
5.375 |
2.625 |
|
3 to 8 1/4 |
4,400 |
13.5 |
SC922 |
12.625 |
12.875 |
1.750 |
8.250 |
5.375 |
2.875 |
|
4 to 10 5/8 |
6,600 |
17.5 |
SC923 |
16.125 |
14.750 |
1.750 |
10.625 |
6.500 |
4.000 |
Original: $480.90
-65%$480.90
$168.31
