Doughty 35mm Atom Hanging Clamp
Doughty 35mm Atom Hanging Clamp

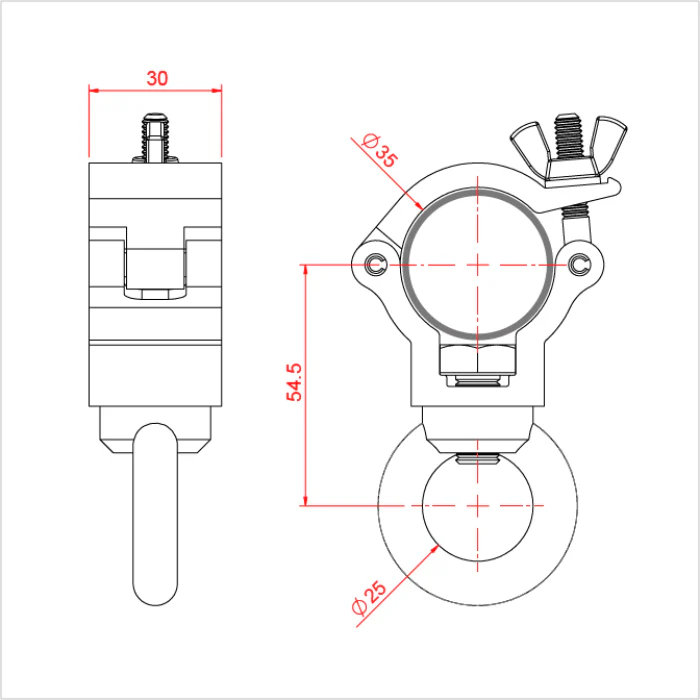

A high tensile extruded aluminium clamp that is suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide factory fitted with an M10 Eye Nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Compatible with 35mm (1.38″) diameter tubes
- Factory fitted with M10 Eye Nut
- Ideal for decorative trussing applications
- Available in polished silver or powder coated black finish
Specifications:
- WLL: 100Kg
- Tube Diameter: 35mm (1.38")
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Fitting: Factory fitted with M10 Eye Nut
References:
- Doughty Engineering
- Product Code: T58920 / T5892001
- Data Sheet
Select Colour
From $49.25
Doughty 35mm Atom Hanging Clamp—
$49.25
Description
Doughty 35mm Atom Hanging Clamp
A high tensile extruded aluminium clamp that is suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide factory fitted with an M10 Eye Nut. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Compatible with 35mm (1.38″) diameter tubes
- Factory fitted with M10 Eye Nut
- Ideal for decorative trussing applications
- Available in polished silver or powder coated black finish
Specifications:
- WLL: 100Kg
- Tube Diameter: 35mm (1.38")
- Clamp Width: 30mm (1.18")
- Material: High tensile extruded aluminium
- Fitting: Factory fitted with M10 Eye Nut
References:
- Doughty Engineering
- Product Code: T58920 / T5892001
- Data Sheet
