Doughty Finial Couplers-Swiveling

Doughty Finial Couplers-Swiveling

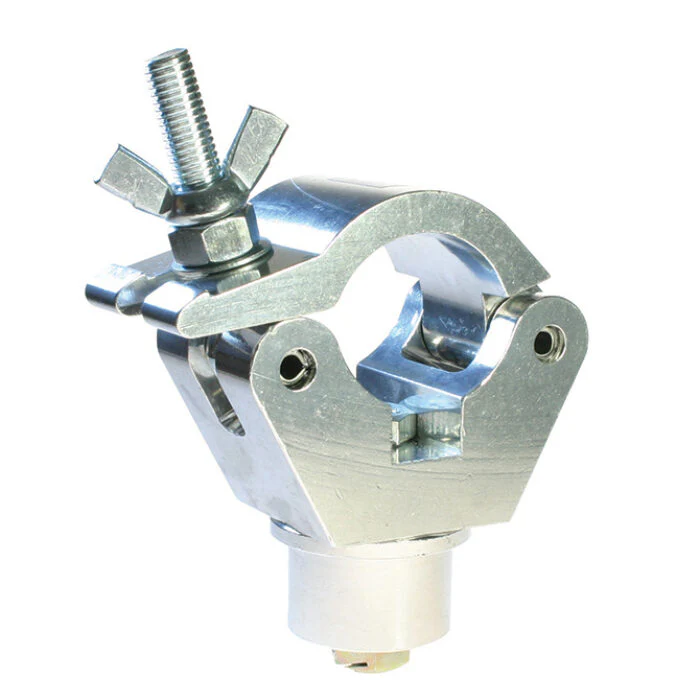

The Doughty Finial Coupler is a high-quality welding-only clamp, designed for professional rigging and structural applications. Available in both fixed and swivelling versions, it offers maximum flexibility and ease of use in demanding environments.

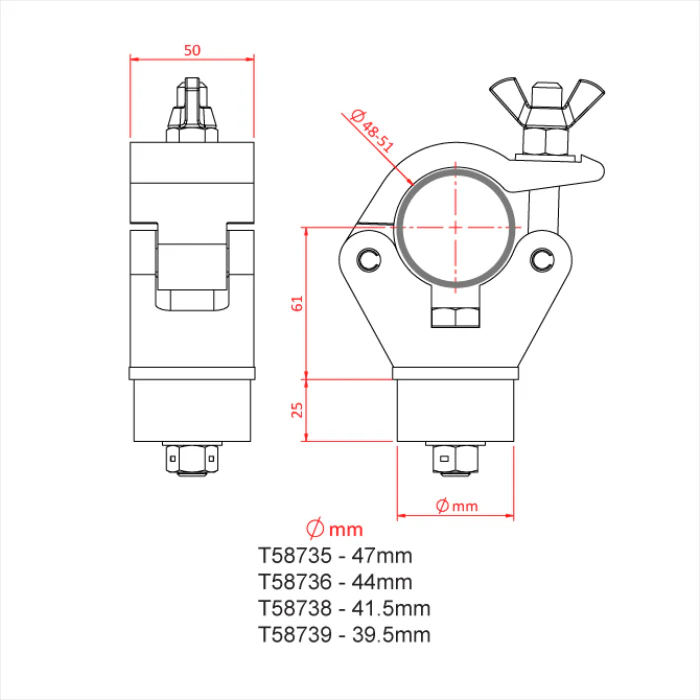

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes fitted with a swivelling plug. Allows 360 degree rotation. Suitable for welding only and is available with four sizes of plug.

Downloads:

Data Sheet

---

Key Features:

• High tensile extruded aluminium construction for durability
• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
• Swivelling plug enables 360 degree rotation
• Available with four sizes of plug for versatile applications
• Designed specifically for welding applications

---

Specifications:

• Material: High tensile extruded aluminium
• Tube Compatibility: 48mm to 51mm (1.89″ – 2.01″) diameter
• Plug Functionality: Swivelling with 360 degree rotation
• Application: Welding only
• Plug Sizes: Available in four different sizes

---

References:

• Doughty Engineering
• Model Numbers: T58735 – T58739
• Data Sheet: T58735-T58739-Data-Sheet.pdf
