Doughty Fixed Ladder Truss Adapter
Doughty Fixed Ladder Truss Adapter
Doughty Truss Adapters enable triangular and square truss sections to be mounted to any of the Doughty Winch Stand range. This system provides the means to lift truss sections into place safely.
The Doughty Fixed Ladder Truss Adapter is suitable for all ladder truss sections, ensuring the truss is in the optimum position for maximum loading. Two sizes of Truss Adapters are available, each supplied with two Slimline Half Couplers.
For any inquiries, please contact us via chat.
Downloads:
User Manual
Key Features:
- Provides a safe and secure means of lifting trusses
- Adjustable to suit most truss sizes
- With two high tensile 6082-T6 aluminum couplers
- High-quality silver powder-coated
- Compatible with all ladder truss sections
Specifications:
- SWL: 441 lbs
- Tube Diameter: 2''
- Truss Adapter Sizes:

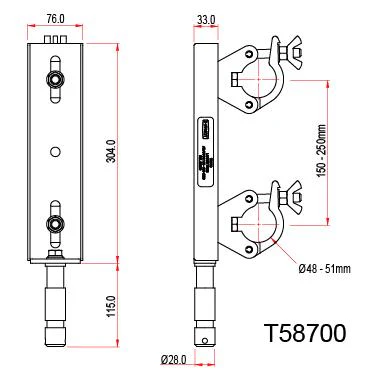

T58700 - 5.9'' to 7.9'' centers

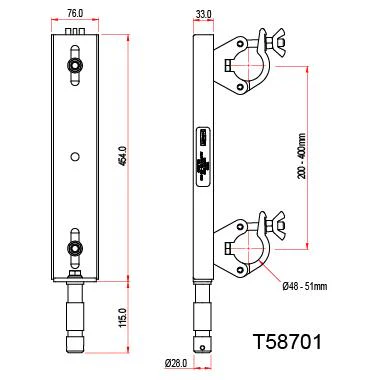

T58701 - 7.9'' to 15.7'' centers - Spigot: ⌀1.1'' Euro Spec
- Includes two Slimline Half Couplers
References:
- Doughty Engineering - Leading UK Rigging Manufacturer
- Member of PLASA (Professional Light and Sound Association)
- Member of ESTA (Entertainment Services and Technology Association)
Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.
Quality and safety are key issues for Doughty. As a member of PLASA (Professional Light and Sound Association) and ESTA (Entertainment Services and Technology Association), Doughty adheres strictly to the standards of trading expected.
Original: $180.92
-65%$180.92
$63.32
