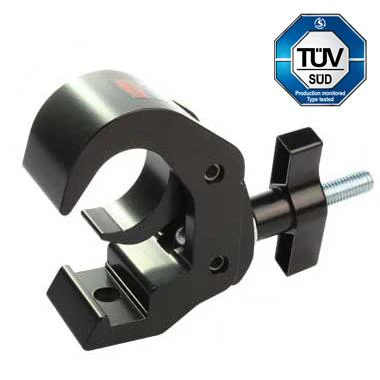

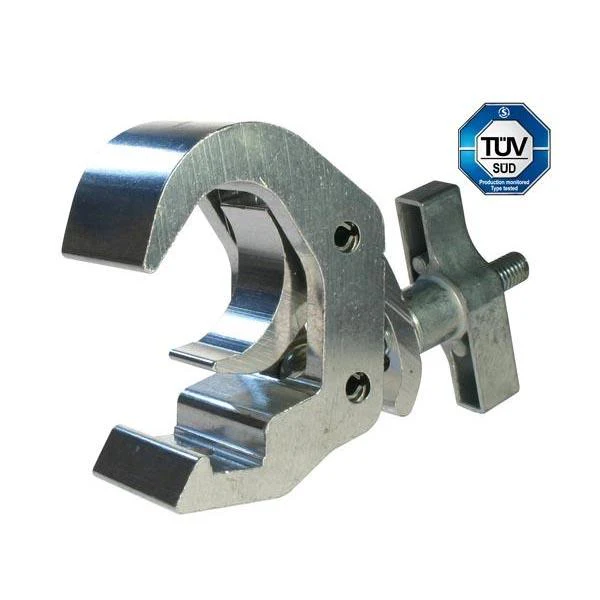

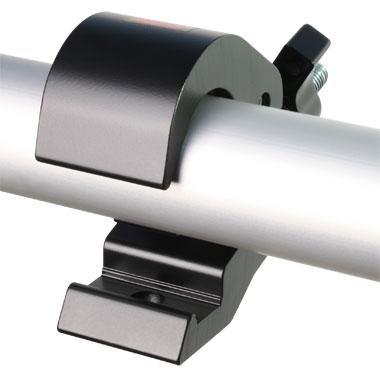

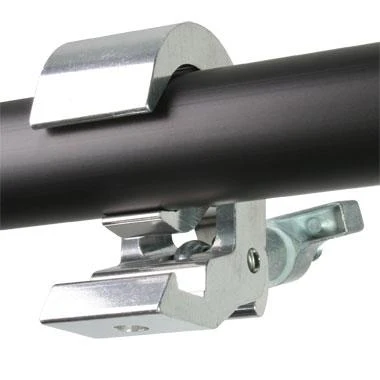

Doughty Quick Trigger Clamp (TÜV approval)
Doughty Quick Trigger Clamp (TÜV approval)
The Doughty Quick Trigger Clamp is the foundation of the renowned Doughty Quick Trigger Clamp range. Expertly crafted for professional use, this clamp enables one-person operation to safely and efficiently mount heavy luminaires and fixtures anywhere along a truss, even next to cross beams, without obstruction.
Featuring spring-loaded jaws that remain open until engaged by the weight of the hanging object, the clamp allows both hands to be free for positioning and lifting. Its slotted base securely holds an M12 bolt head or nut, while the large easy-grip handle ensures quick and secure tightening — delivering unmatched convenience and reliability for rigging professionals.
Ideal for use in theatre, film, television, and photography industries, the Doughty Quick Trigger Clamp is TÜV approved and engineered from high tensile aluminum for strength, safety, and durability.
Downloads:
Key Features:
- One-person operation for fast and efficient rigging
- Spring-loaded jaws automatically close under load for added safety
- Clamp mounts fixtures at any point on truss without obstruction
- Easy-grip handle and M12 bolt compatibility for secure installation
- Ideal for theatre, film, TV, and photographic industries
Specifications:
- TÜV approval
- SWL: 551 lbs
- Tube Diameters: 1.5'' to 2''
- Width: 2''
- Fixings: M12 Hole
- Weight: 1.68 lbs
- Material: High tensile aluminum
- Finish: Polished Aluminum / Black Powder Coated
References:
- Doughty Engineering – UK-based manufacturer since 1985
- Approved by TÜV Product Services for quality and safety
- Member of ESTA and PLASA, adhering to industry standards
For any inquiries, please contact us via chat.
Original: $49.48
-65%$49.48
$17.32
