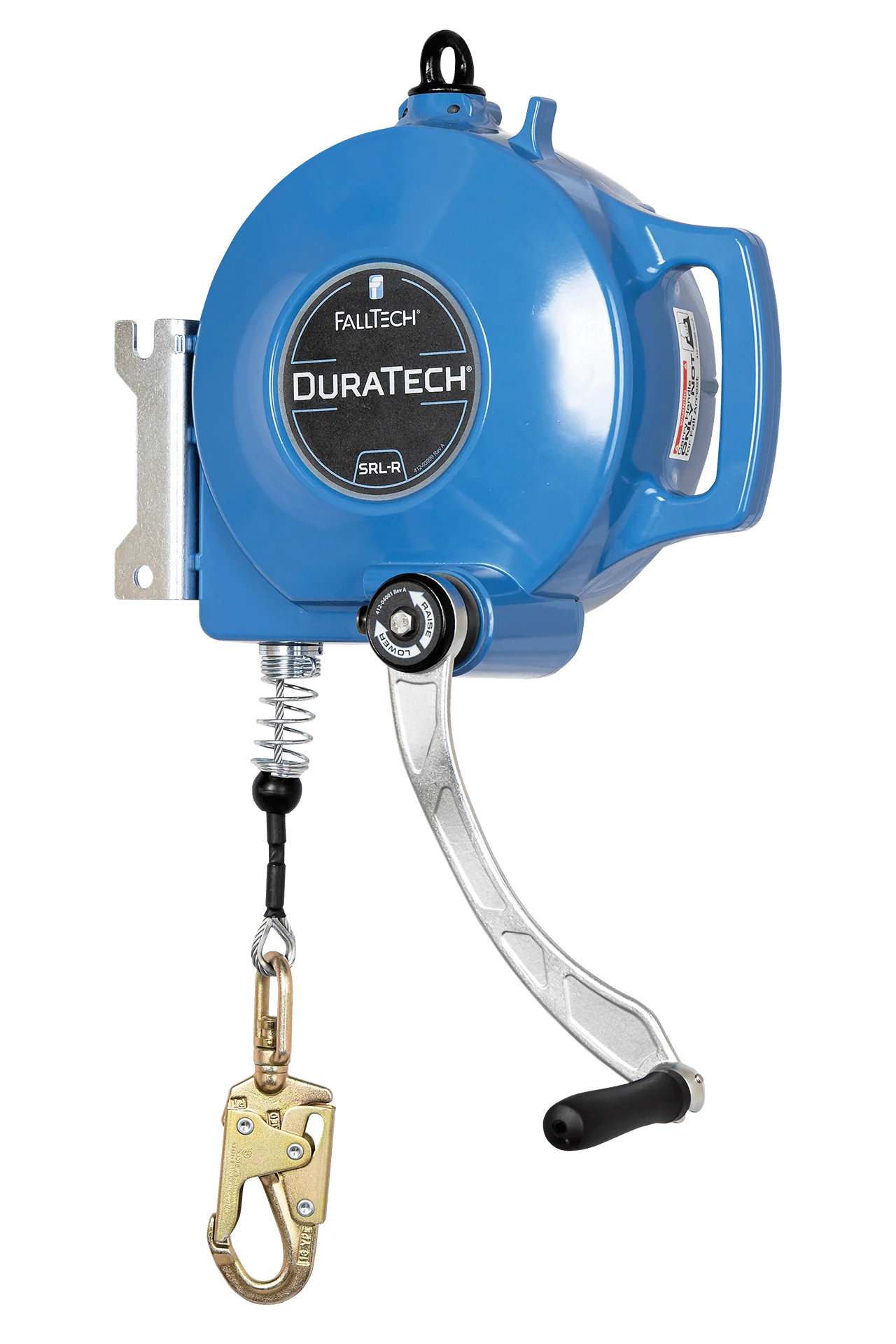

DuraTech® 3-way SRL-R with 120' Galvanized Steel Cable for Tripods and Davits
DuraTech® 3-way SRL-R with 120' Galvanized Steel Cable for Tripods and Davits
FEATURES
- Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue
- Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
- 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
- Features integrated proprietary mounting bracket for tripods and davits
- Complies with ANSI Z359.14-2014
MATERIAL SPECIFICATIONS
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Housing and Drum: Machined aluminum alloy
PERFORMANCE SPECIFICATIONS
Static Strength: 3,000 lb min.
ANSI SRL Class: Class B
Avg. Arrest Force: 1,125 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 54"
SIZES & PART NUMBERS
- 7277 - 85'
- 7278 - 120'
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1910.140 and 1926.502
ANSI Z359.14-2014
$1,759.45
Original: $5,027.00
-65%DuraTech® 3-way SRL-R with 120' Galvanized Steel Cable for Tripods and Davits—
$5,027.00
$1,759.45
Description
DuraTech® 3-way SRL-R with 120' Galvanized Steel Cable for Tripods and Davits
FEATURES
- Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue
- Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
- 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
- Features integrated proprietary mounting bracket for tripods and davits
- Complies with ANSI Z359.14-2014
MATERIAL SPECIFICATIONS
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Housing and Drum: Machined aluminum alloy
PERFORMANCE SPECIFICATIONS
Static Strength: 3,000 lb min.
ANSI SRL Class: Class B
Avg. Arrest Force: 1,125 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 54"
SIZES & PART NUMBERS
- 7277 - 85'
- 7278 - 120'
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1910.140 and 1926.502
ANSI Z359.14-2014
