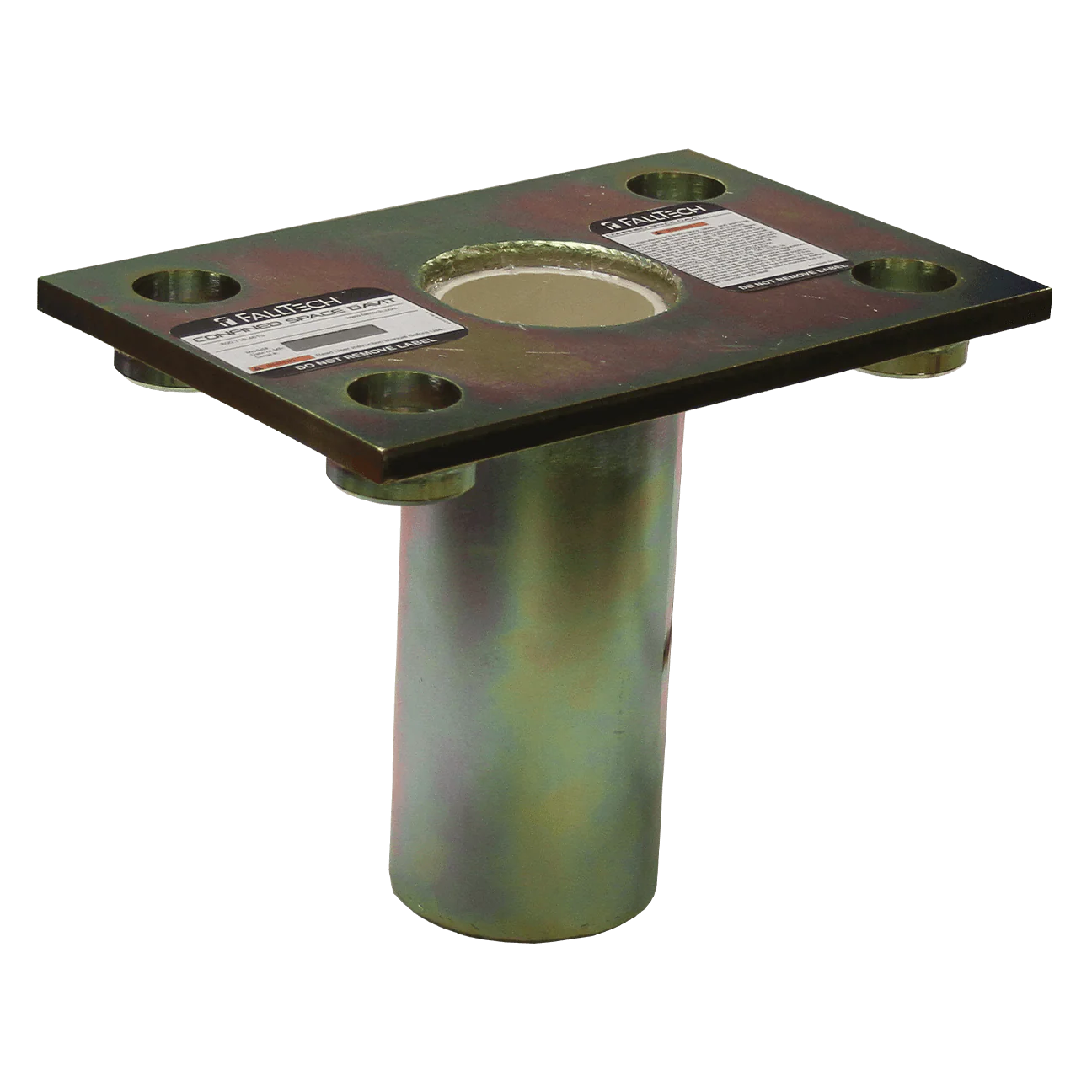

Flush-mount Plated Steel Bolt-on Fixed Davit Base
Flush-mount Plated Steel Bolt-on Fixed Davit Base
FEATURES
- Permanently installed davit base solution is ideally suited for recurrent access locations
- Bolt-on design for existing steel and concrete installation.
- Rugged 8" x 12" plate provides long lasting fixed base solution
- 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
- Flush floor profile is well-matched for high traffic areas and helps reduce tripping hazards
- Plated steel construction throughout; also available in stainless steel
- User-supplied fasteners required for installation
- Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions
MATERIAL SPECIFICATIONS
Davit Base: Plated carbon steel
Sleeve Insert: PVC pipe
PERFORMANCE SPECIFICATIONS
Rated Capacity: 620 lb at minimum 4:1 design factor
Mast Moment Proof Load: 6,167 ft. lb
Mast Rotation: 360°
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1926.502 and 1910.66 when used in a complete system
$407.75
Original: $1,165.00
-65%Flush-mount Plated Steel Bolt-on Fixed Davit Base—
$1,165.00
$407.75
Description
Flush-mount Plated Steel Bolt-on Fixed Davit Base
FEATURES
- Permanently installed davit base solution is ideally suited for recurrent access locations
- Bolt-on design for existing steel and concrete installation.
- Rugged 8" x 12" plate provides long lasting fixed base solution
- 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
- Flush floor profile is well-matched for high traffic areas and helps reduce tripping hazards
- Plated steel construction throughout; also available in stainless steel
- User-supplied fasteners required for installation
- Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions
MATERIAL SPECIFICATIONS
Davit Base: Plated carbon steel
Sleeve Insert: PVC pipe
PERFORMANCE SPECIFICATIONS
Rated Capacity: 620 lb at minimum 4:1 design factor
Mast Moment Proof Load: 6,167 ft. lb
Mast Rotation: 360°
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1926.502 and 1910.66 when used in a complete system
