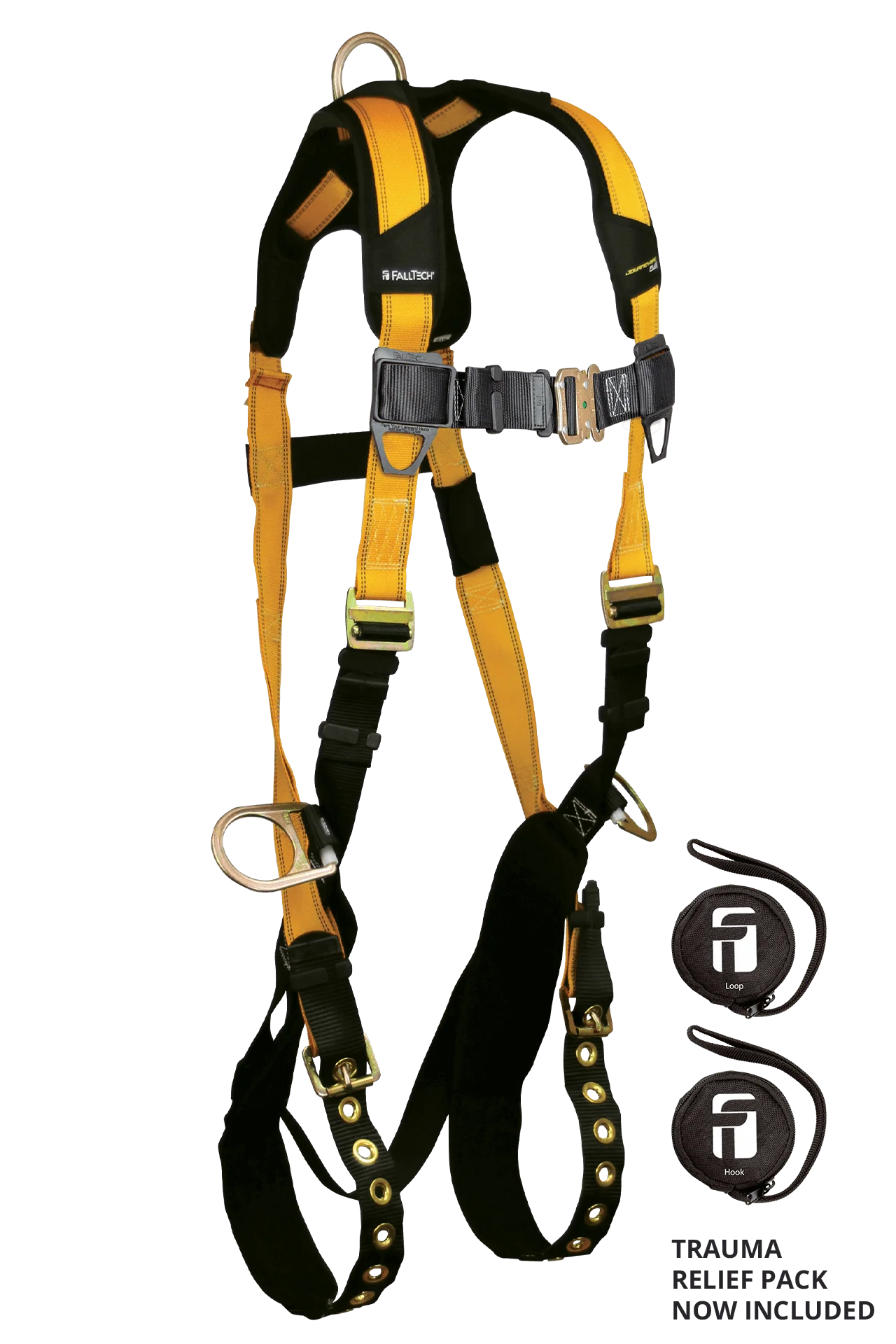

Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness, Tongue Buckle Leg Adjustment
Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness, Tongue Buckle Leg Adjustment
Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness, Tongue Buckle Leg Adjustment
FEATURES
- Features integral padded shoulder yoke and hip-to-seat leg pads to provide advanced breathable user comfort
- Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
- Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment
- Dorsal and hip D-rings, quick connect chest, and tongue buckle leg closures are all durably plated alloy steel
- Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
- Includes fully adjustable suspension trauma relief system
- Complies with ANSI Z359.11-2014
MATERIAL SPECIFICATIONS
Webbing: Polyester; 5,000 lb min. static strength
D-rings: Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 3,600 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
SIZES & PART NUMBERS
- 7023 - UniFit (S, M, L)
- 7023XL - XL
- 70232X - 2X
- 70233X - 3X
- 70234X - 4X
DOWNLOADS
Instruction Manual
Declaration of Conformity
Declaration of Conformity (CSA)
Sell Sheet/Brochure
Harness Sizing Chart
COMPLIANT WITH:
ANSI Z359.11-2014
OSHA 1926.502 and 1910.66CSA Z259.10-2018
Select Size
From $70.70
Original: $202.00
-65%Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness, Tongue Buckle Leg Adjustment—
$202.00
$70.70
Description
Journeyman Flex® Steel 3D Standard Non-belted Full Body Harness, Tongue Buckle Leg Adjustment
FEATURES
- Features integral padded shoulder yoke and hip-to-seat leg pads to provide advanced breathable user comfort
- Proprietary dorsal attachment sleeve supports effortless addition of personal SRLs.
- Plated alloy steel low-profile spring tension roller torso adjusters provide simple upper-body adjustment
- Dorsal and hip D-rings, quick connect chest, and tongue buckle leg closures are all durably plated alloy steel
- Tongue buckle legs are uniquely equipped with 9 grommeted adjustment positions for a wider range of fit
- Includes fully adjustable suspension trauma relief system
- Complies with ANSI Z359.11-2014
MATERIAL SPECIFICATIONS
Webbing: Polyester; 5,000 lb min. static strength
D-rings: Plated alloy steel; 5,000 lb min. static strength
Buckles and Adjusters: Plated alloy steel; 3,372 lb min. static strength
PERFORMANCE SPECIFICATIONS
Static Strength: 3,600 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
SIZES & PART NUMBERS
- 7023 - UniFit (S, M, L)
- 7023XL - XL
- 70232X - 2X
- 70233X - 3X
- 70234X - 4X
DOWNLOADS
Instruction Manual
Declaration of Conformity
Declaration of Conformity (CSA)
Sell Sheet/Brochure
Harness Sizing Chart
COMPLIANT WITH:
ANSI Z359.11-2014
OSHA 1926.502 and 1910.66CSA Z259.10-2018
