Lift Products Inc MJHLE Electric High Lift

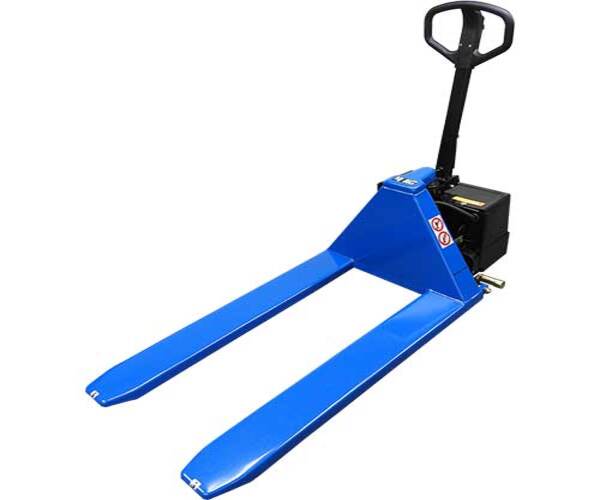

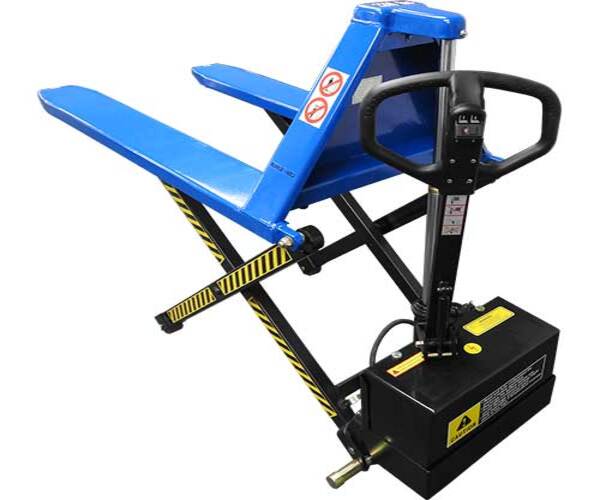

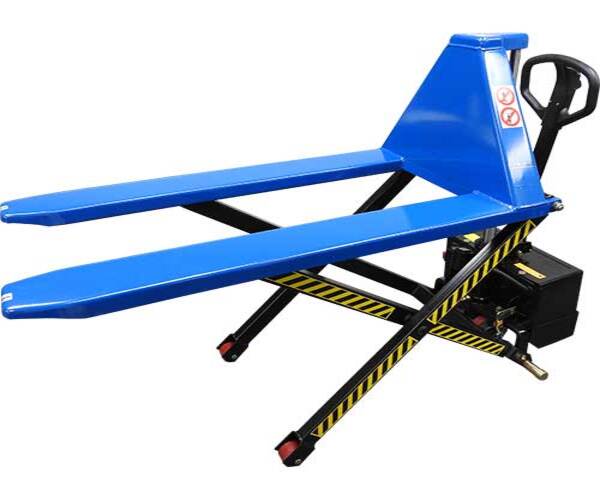

MJHLE Electric High Lift
The Maxx-Jack electric high lift models are ideal for lifting skids, plastic pallets, wire baskets, or containers with open bottoms. With the optional slide on platform this unit makes a great portable lift table.
The electric lift is faster and more ergonomic than pump-up models that are often only one inch per pump. The 12 volt electrical system includes battery and charger. Push button lift and lower control is in the handle and a magnetic backed remote lift/lower control with 6 ft. cord is optional.
An automatic floor lock that keeps the unit from moving while in the raised position is standard and engages once the forks are lifted above 11" from the floor. Steer wheels are 6" poly and load wheels are 3" poly.
Standard Features
-
3"ø poly load wheels
-
6"ø poly steer wheels
-
Automatic floor lock
-
Beveled forks
-
Up/Down switch on handle
-
Illuminated voltage meter
-
On/Off switch
-
Removable maintenance cover
-
Ergonomic steer handle
-
Dual stage hydraulic cylinder
-
Clearly decaled operation
-
Scissor gap avoids shearing
-
Trapped top rollers
-
Remote automatic charger
-
12V 70Ah maintenance free battery
-
Works with open bottom skids
-
Not for use with closed pallets
-
CE certified
Options
- Slide On Platform
- Remote Control
Specifications
| Model | Vertical Travel |
Capacity | Height | Forks | Lift Speed |
Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| Down | Up | OD | ID | L | |||||
| MJHLE-N22 | 28.25" | 2,200 lbs | 3.25" | 31.5" | 20.5" | 7.75" | 44.5" | 12 sec | 328 lbs |
| MJHLE-W22 | 28.25" | 2,200 lbs | 3.25" | 31.5" | 27" | 14" | 44.5" | 12 sec | 350 lbs |
