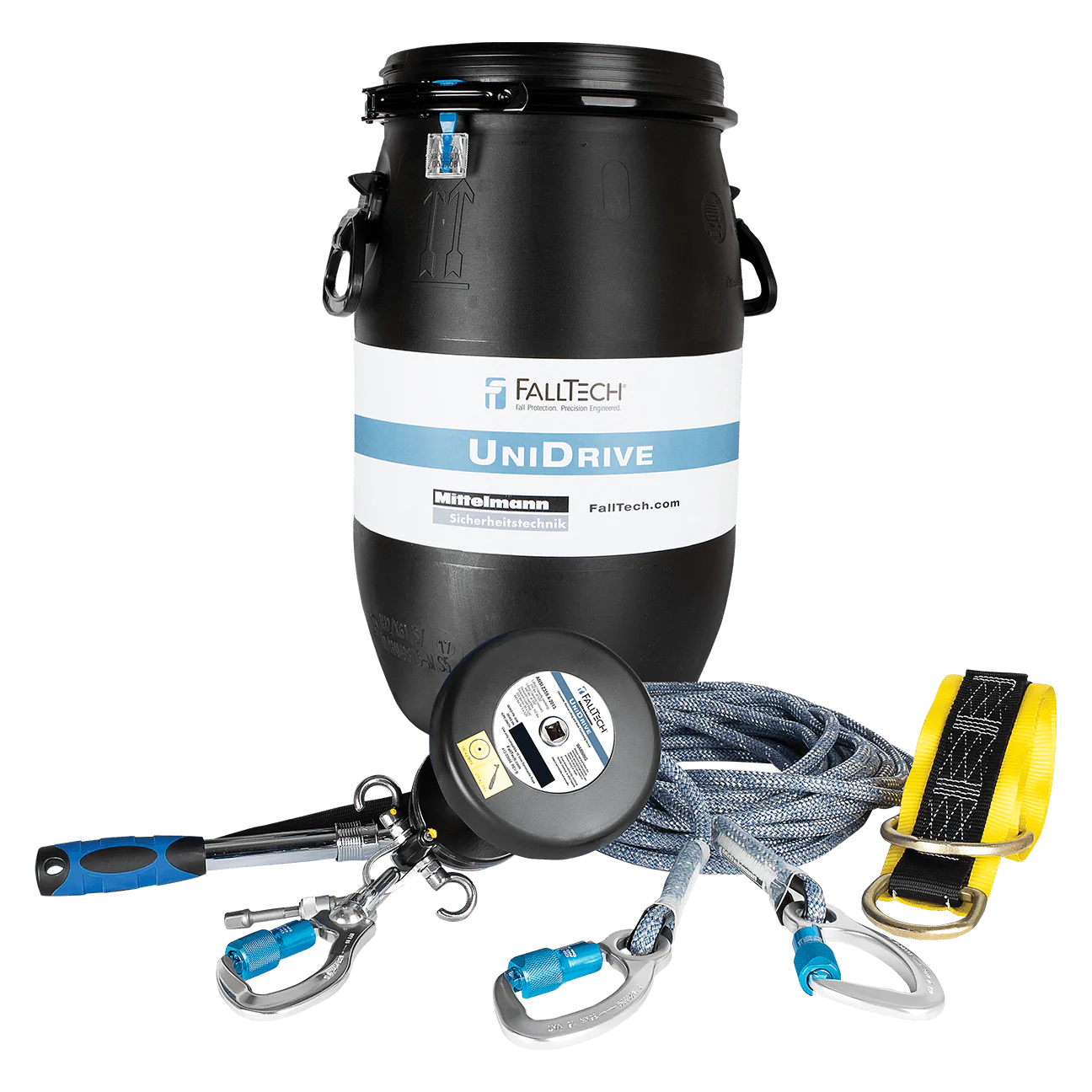

Rescue and Descent Crane Kit with Sealed Barrel
Rescue and Descent Crane Kit with Sealed Barrel
FEATURES
- 7/16" sheathed-core kernmantle rope lifeline resists moisture and abrasion for longer life
- Integral triple-mode lifting capability includes handwheel, ratcheting handle and power drill adapter.
- Telescoping Ratchet lifting handle adjusts from 12" to 18" for unmatched rescue lifting leverage
- Bi-directional design provides shuttle operation for multiple successive descending users
- Rope lifeline features aluminum alloy connectors for lighter weight
- Device features integral belay hooks and swiveling aluminum attachment carabiner
- 8 gallon sealed barrel with security tag limits equipment inspection audit costs
- Also includes 6' pass-through choker anchor
- Complies with ANSI Z359.4-2013
MATERIAL SPECIFICATIONS
Rope: 7/16" kernmantle polyamide blend
Connectors: Aluminum alloy; 5,000 lb static strength with 3,600 lb gate strength
Housing: Powder coated aluminum
PERFORMANCE SPECIFICATIONS
Max Descent Heigh: t524' for 2 users
Max Descent Load: 440 lb for 2 users
Descent Speed: 2.6' per second for 1 user
Cumulative Descent Distance: 25,200' or 48 descents with 220 lb
Cumulative Descent Distance: 2,620' or 5 descents with 440 lb
Max Lifting Height: 524' at 440 lb
Max Work Lifting Load: 308 lb
SIZES & PART NUMBERS
- 6813150K - 150'
- 6813300K - 300'
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
ANSI Z359.4-2013
Select Size
From $3,598.00
