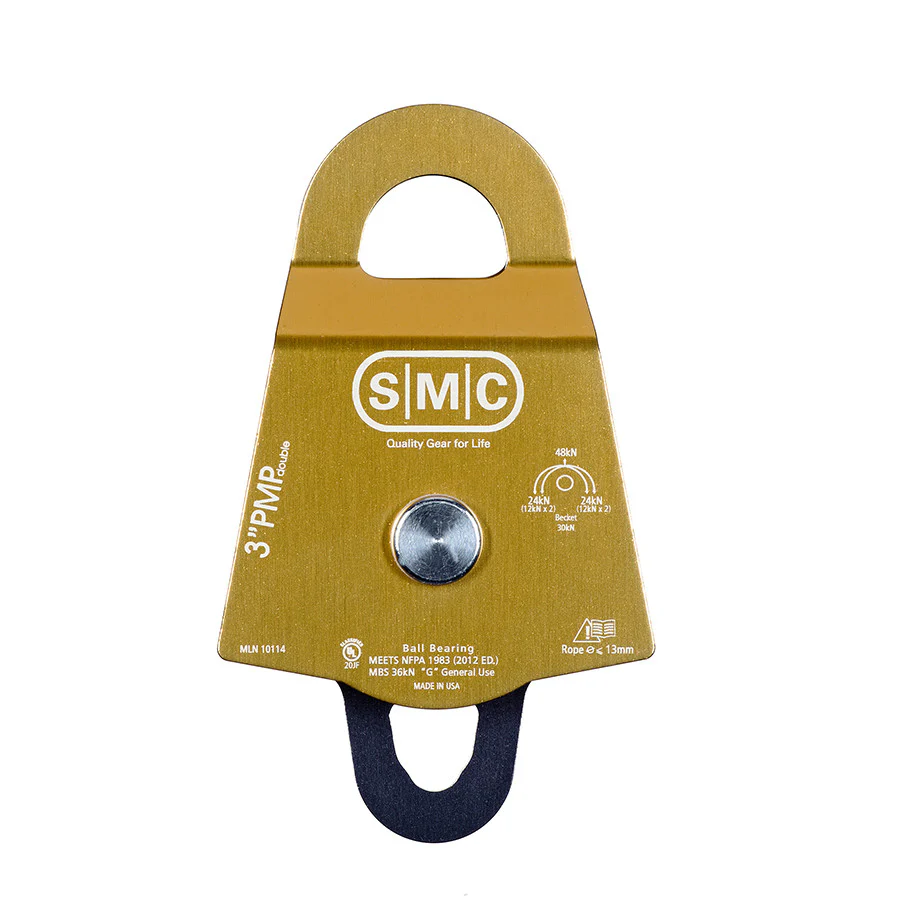

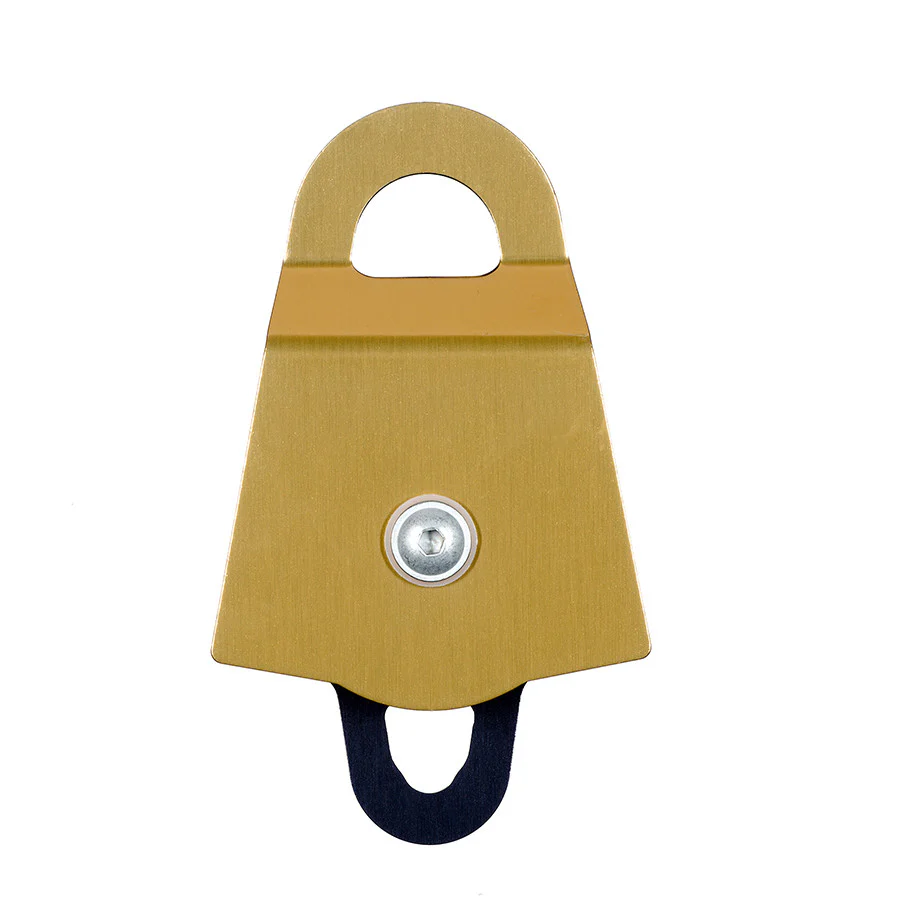

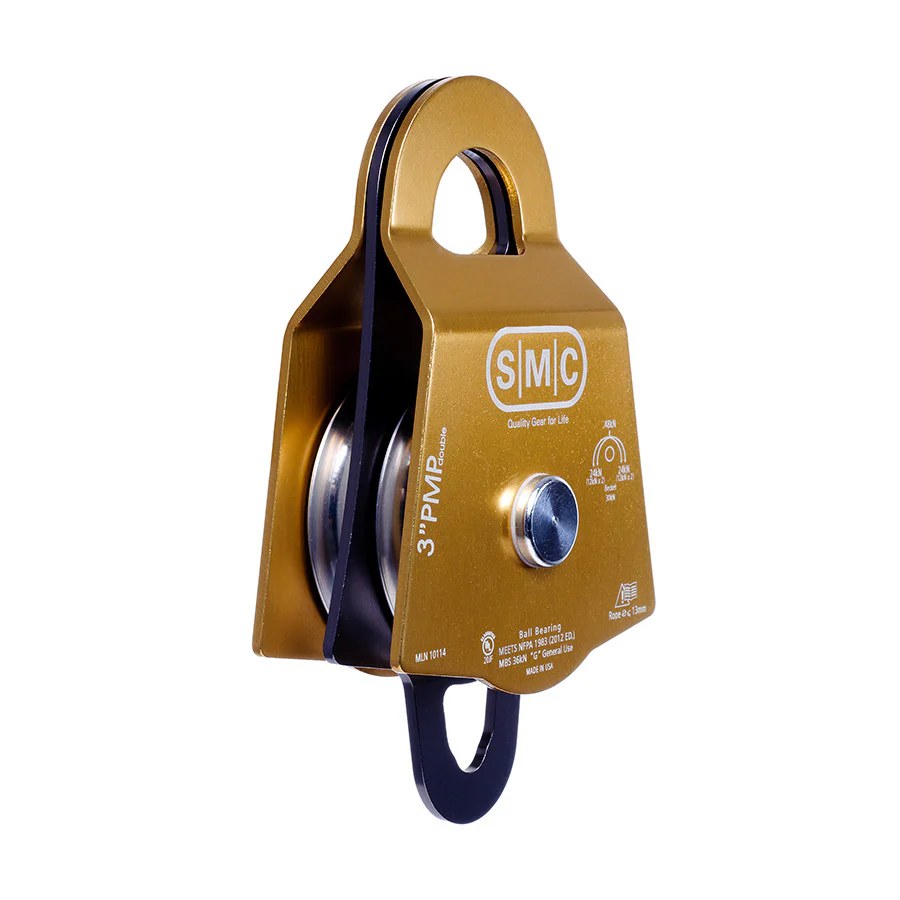

PMI SMC 3” Double Prusik Minding Pulley – NFPA

• DESCRIPTION
• SPECIFICATIONS
• FEATURES

The unique shape of the SMC 3” Double Prusik Minding Pulley’s aluminum side plates allow for efficient operation of Prusik hitches as a belay or progress capture device. A 3” diameter sheave runs on a high efficiency ball bearing, while low profile fasteners help eliminate the chance of the pulley snagging. The SMC 3” Double PMP can accommodate up to 13mm rope.

• Sealed ball bearings
• Large top hole easily accepts 3 carabiners
• Designed for 11mm – 13mm rope
• Precision machined aluminum side plates and 3” sheaves
• Includes becket
• NFPA 1983 (2012), G
• Berry Compliant
• Made in the USA

• Color: Gold/Grey
• Type: Double Pulley
• MBS: 48 kN (10790 lbf)
• Weight: 1 lbs 4.8 oz (590 g)
• Length: 7.10" (18.0 cm)
• Width: 4.17" (10.6 cm)
• Height: 2.20" (5.6 cm)
• Becket Strength: 30 kN
• Axle: Ball Bearing
• Sheave: 2.97" Aluminum
• Tread: 2.46"
• Max Rope Size: 13 mm
• Material: Aluminum
