Lift Products Inc Stainless Steel SXT Lift Tables

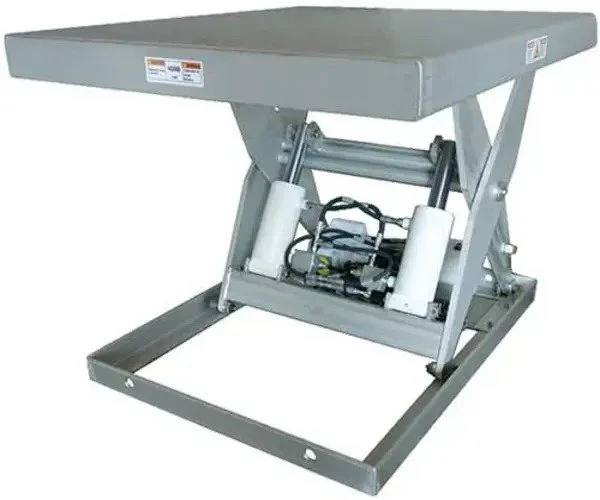

Stainless Steel SXT Lift Tables
Ideal for use in wash down areas, the SXT hydraulic lift table has a passivated sanitary finish and all dead end spaces have been eliminated.
In addition to the many ergonomic benefits derived by using lift tables, the USDA Approved SXT also meets the complex requirements demanded by the food processing, chemical and pharamaceutical industries.
The SXT is constructed out of T304 stainless steel, has totally enclosed dual hydraulic lift cylinders and a self-contained power unit.
Standard Features
-
T304 Stainless Steel Construction
-
Relief Valve to Prevent Overloading
-
Control Valve for Controlled Descent
-
Self-Contained Power Unit
-
Integrally Mounted Hydraulic Drive W/Power Unit
-
Safety Up-Down Pendant Control
-
Dual, SST Powder Coated Hydraulic Cylinders
-
Pickle Passivated Finish
-
USDA Approved
Options
-
Handrails
-
Tilting top
-
Mountd controls
-
Custom heights
-
Raised base
-
Stainless cylinders
-
3 phase voltage
-
Custom capacities
-
Stainless cams
-
Safety locks
-
Wash through platform
-
Custom sizes
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size |
Up Speed |
Base Frame |
Motor | Voltage | |
|---|---|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||||
| SXT-040-36 | 27" | 4,000 lbs | 9" | 36" | 42" x 48" | 30 sec | 35.5" x 45" | 1 HP | 115 |
