Vestil Manufacturing Corp Economical Drum Transporters

Vestil Manufacturing Corp Economical Drum Transporters

* Completely Mechanical Operation

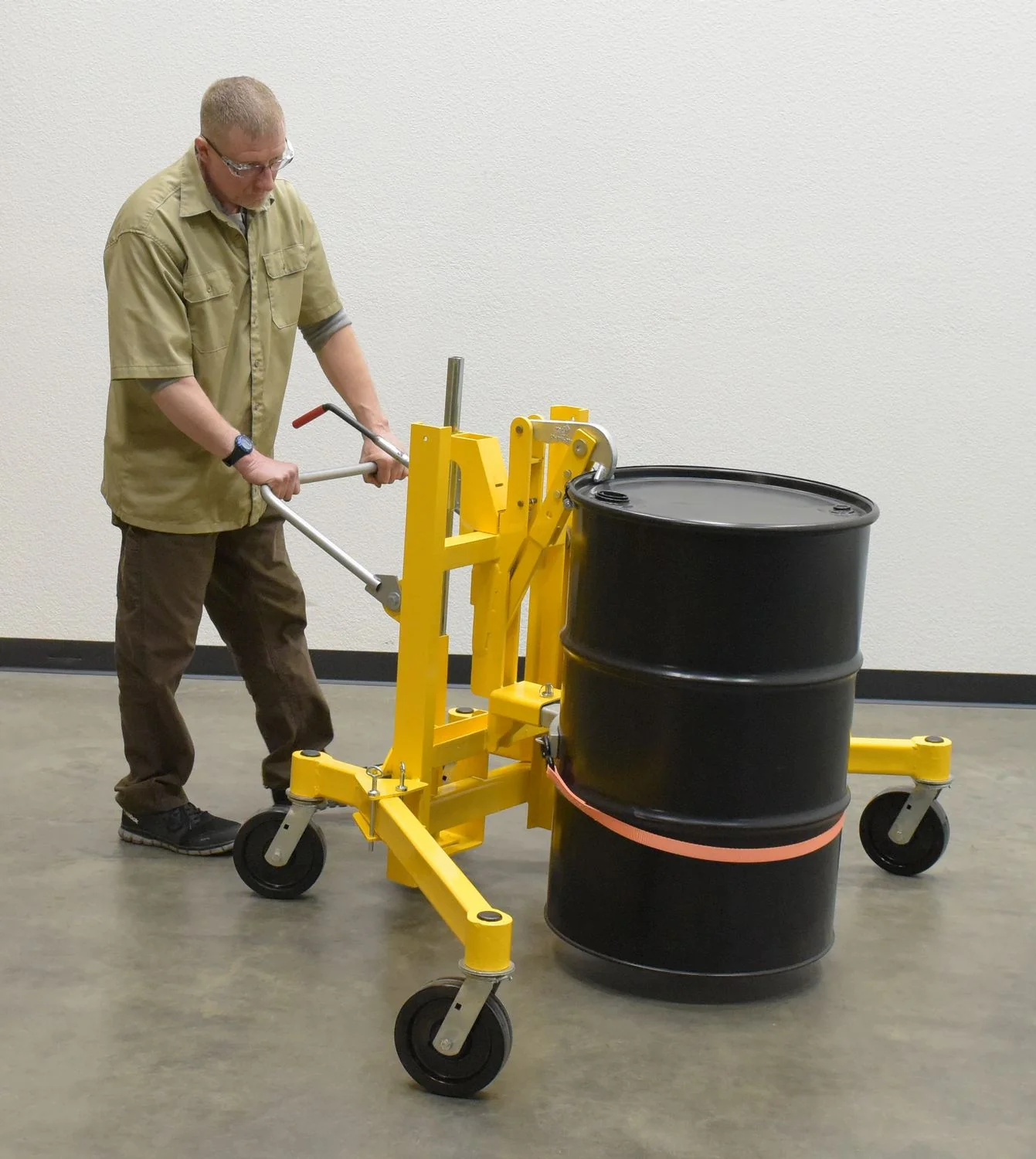

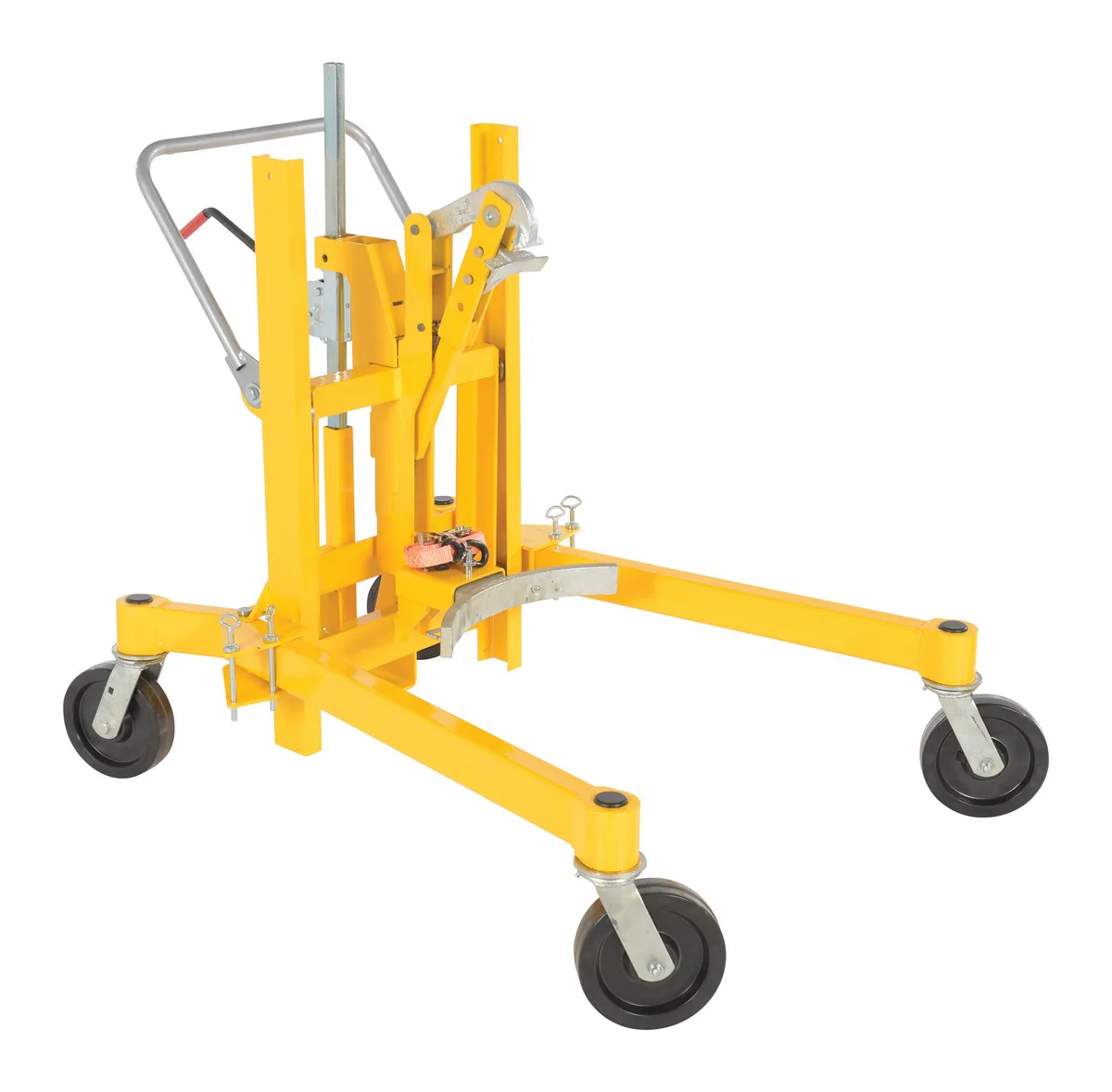

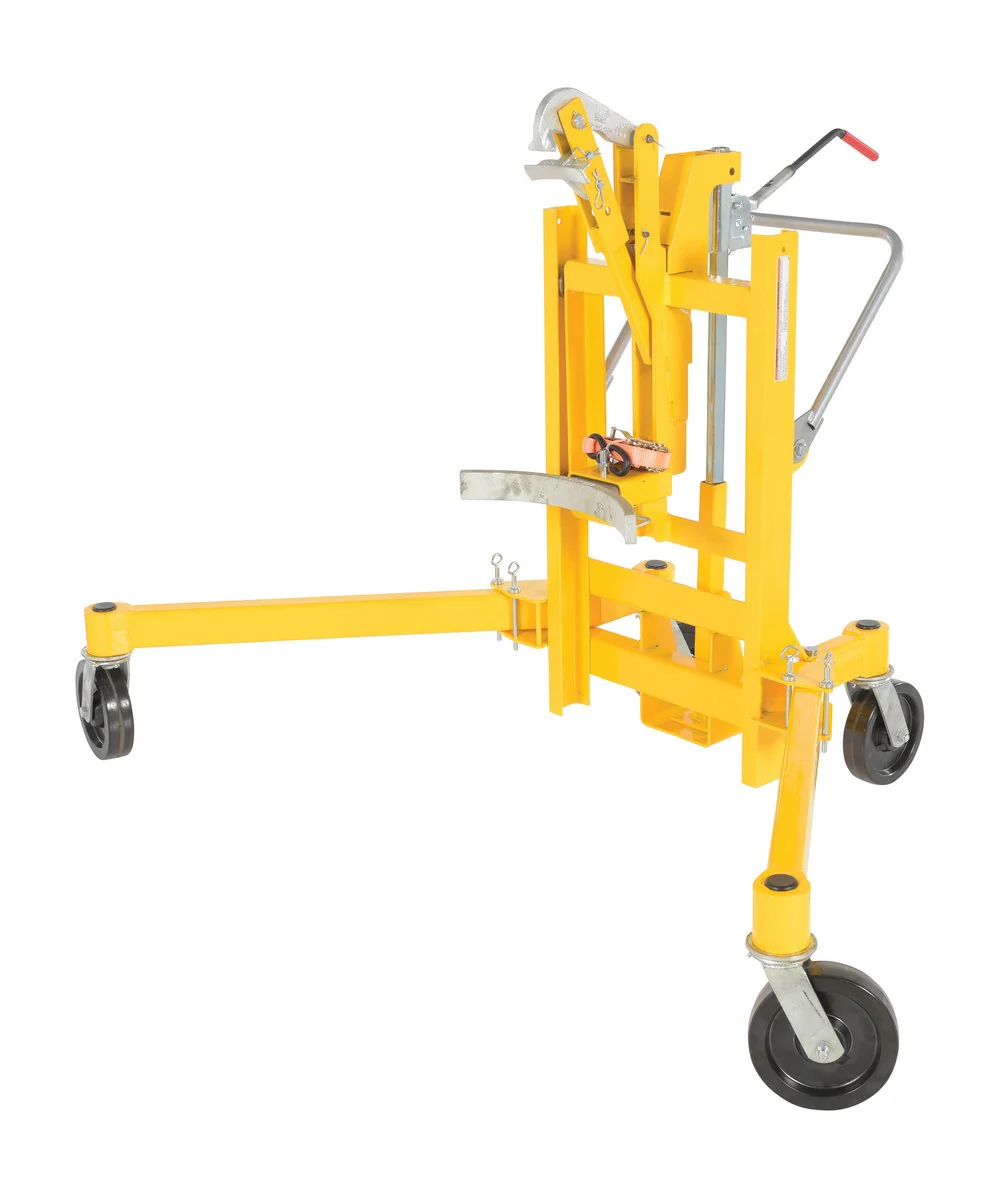

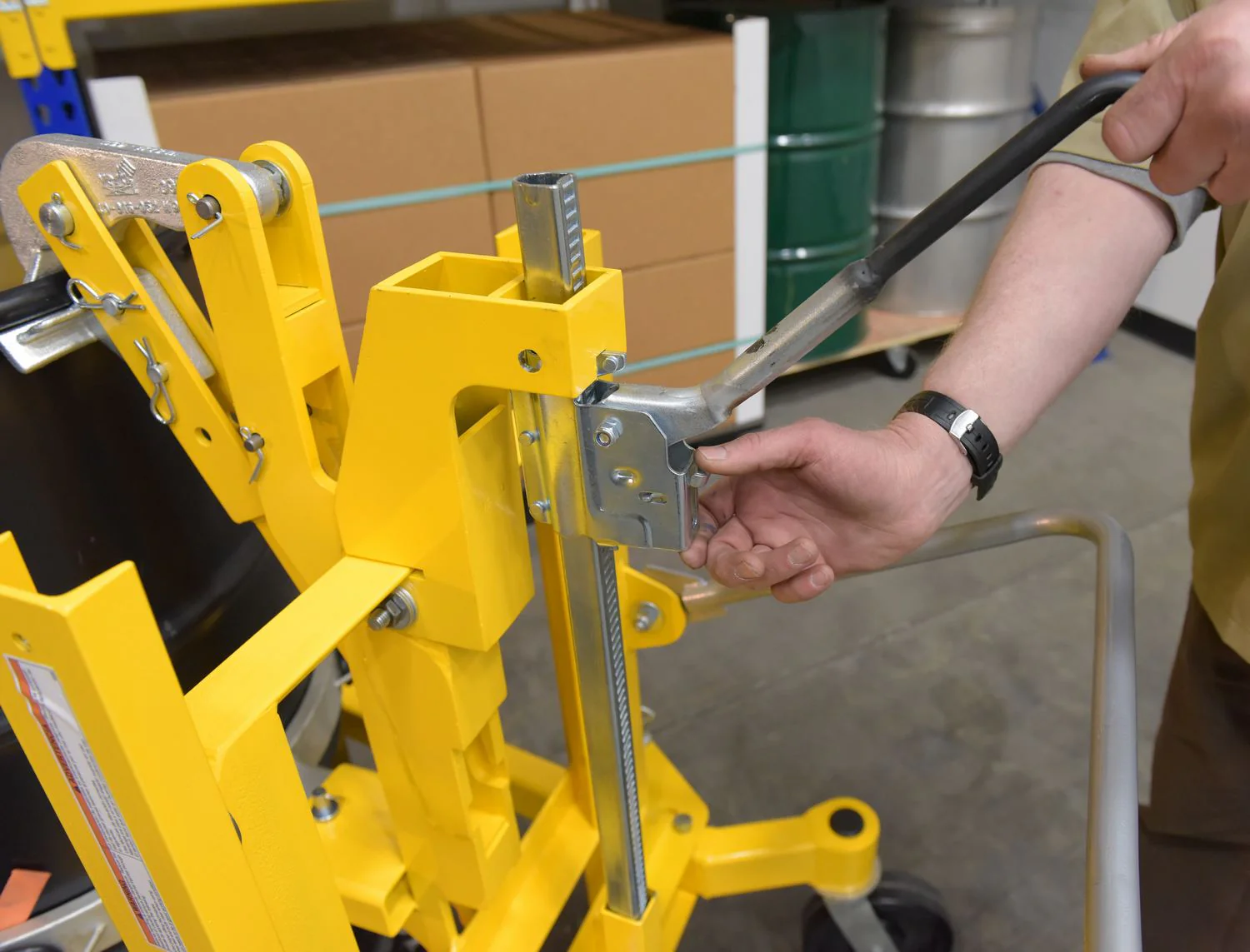

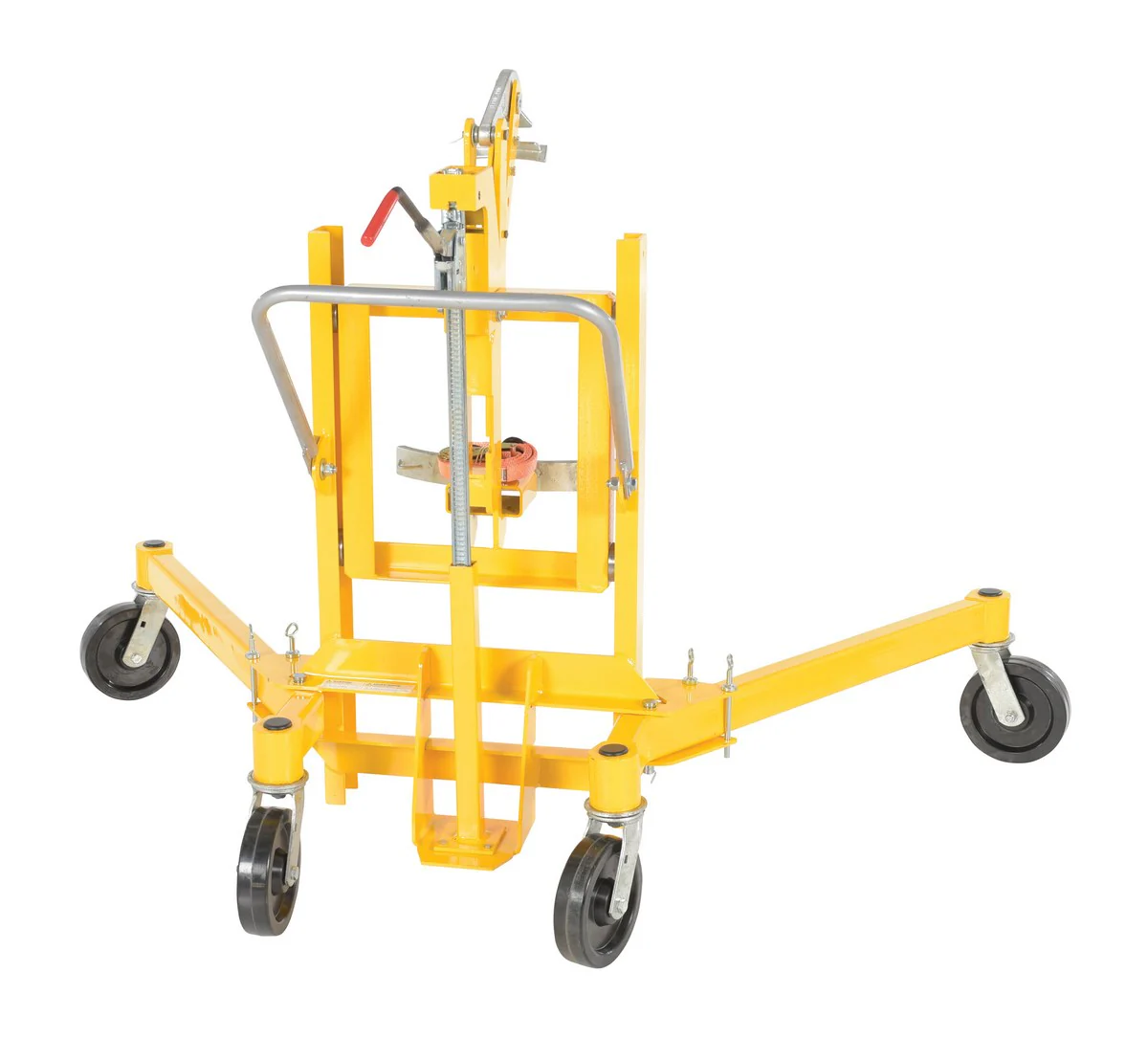

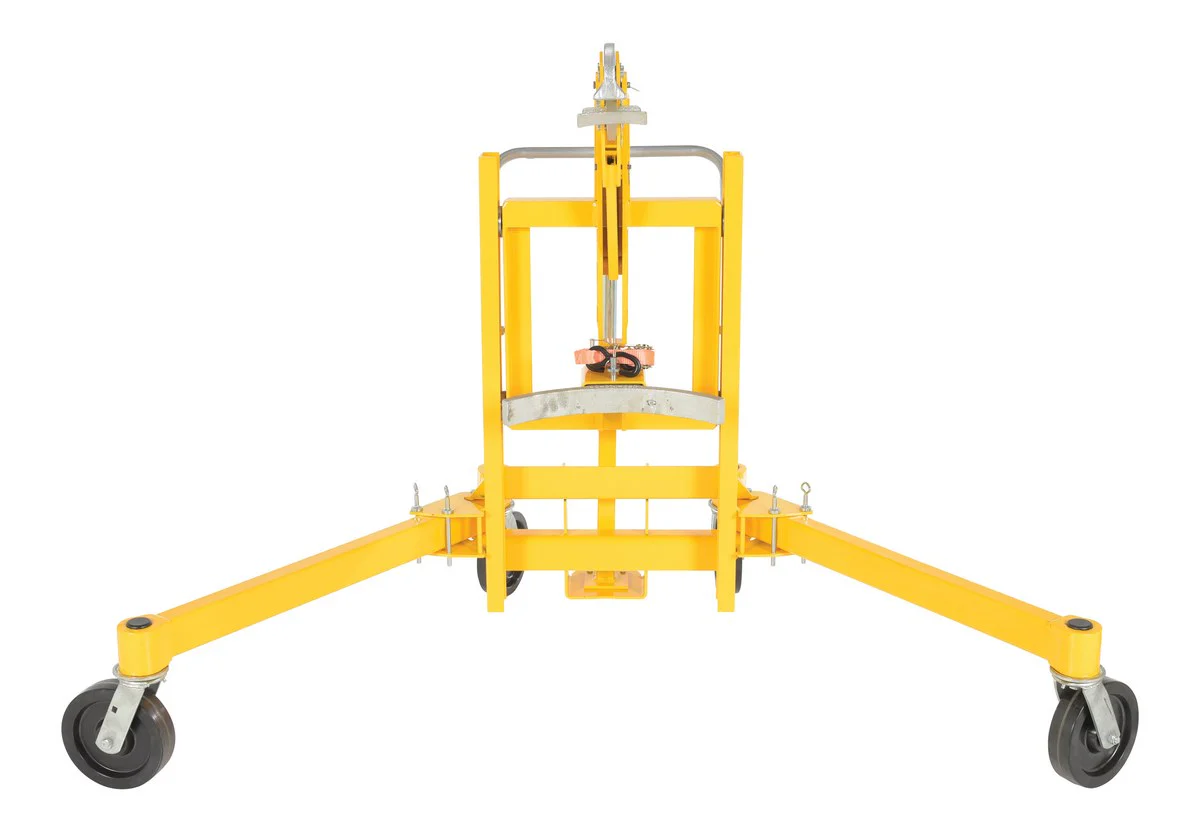

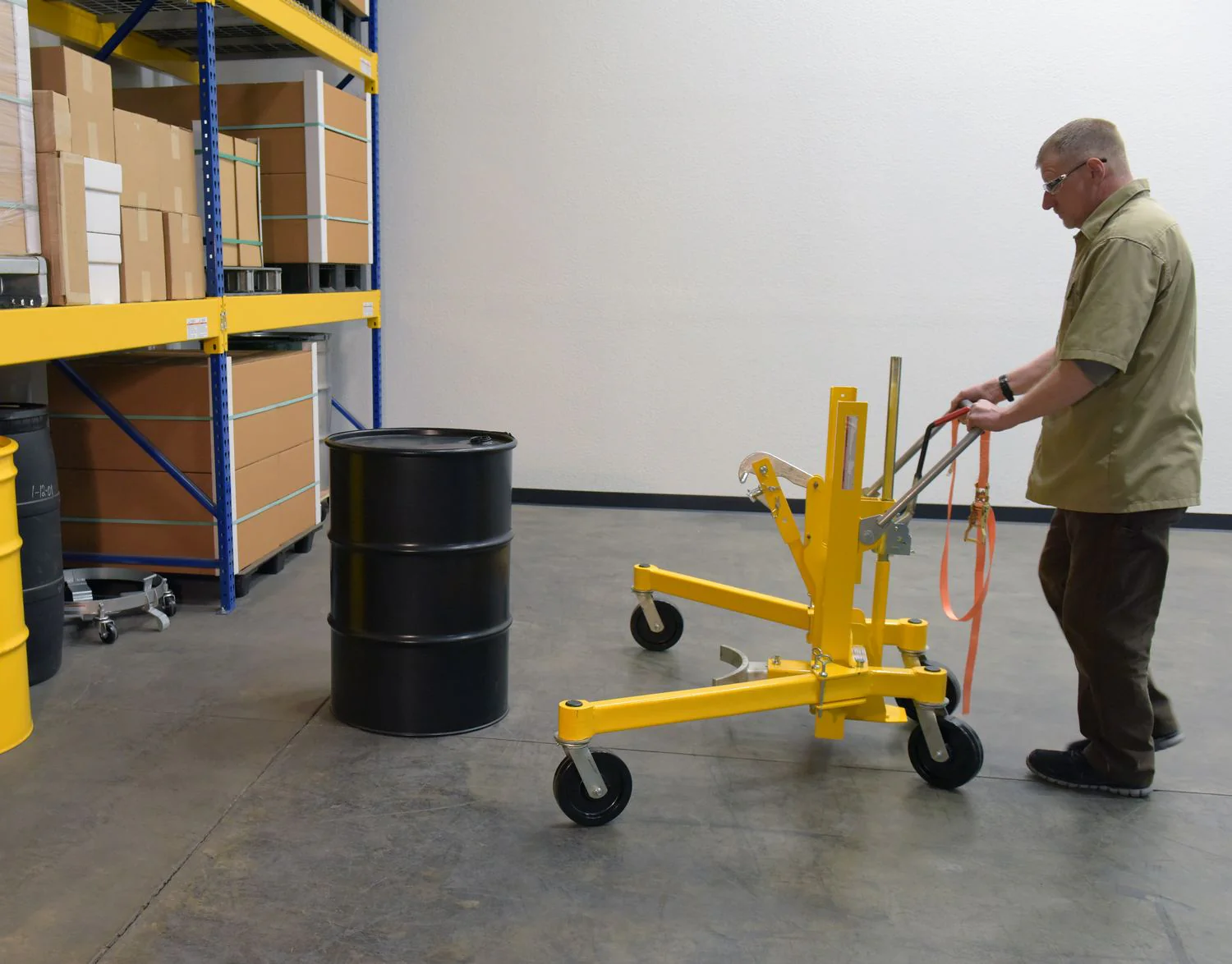

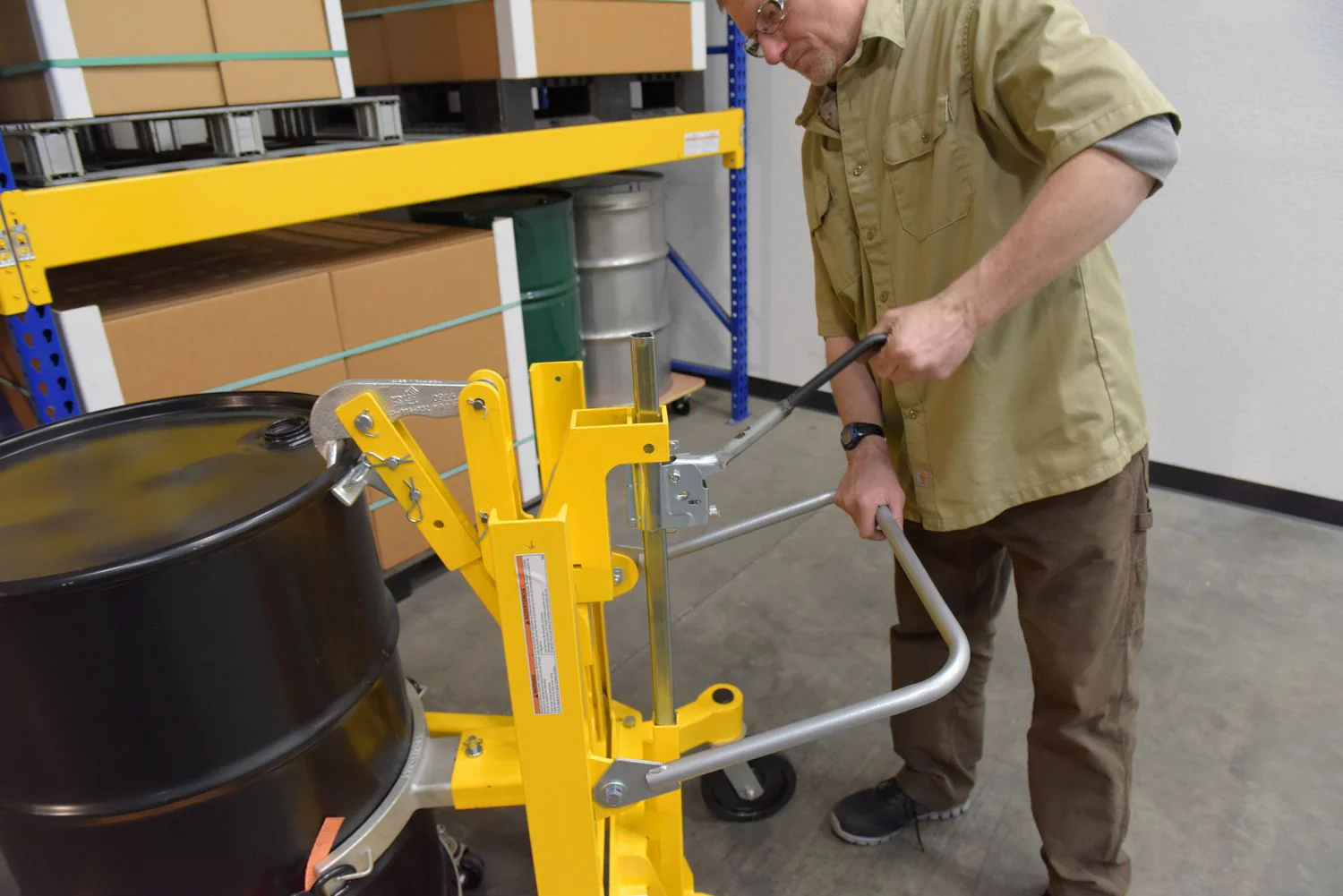

Unique portable unit designed to lift and transport steel, plastic, and fiber drums with a top lip. Steel jaw securely grips the top lip of the drum. Available with either a manual mechanical ratchet, foot pump hydraulic, or DC powered lift mechanism. Straddle legs rotate for access to drums on pallets. Units roll on four (4) 8" x 2" phenolic swivel casters. The push handle folds down for easy access to ratchet and foot pump. All welded steel construction. Baked-in powder coated toughness with a safety yellow finish. Optional scale weighs drums to an accuracy of +/-0.5 pounds. Optional scale includes (6) AA cell batteries and an AC adaptor.

Drum Transporter with Scale:
The portable Economical Drum Transporter is designed to lift and transport drums with a top lip. Drums are secured in place by utilizing the top jaw grip, as well as, the central support and strap. With a foot pump lift design, the user can position the drum to the best suitable height. The legs of the transporter have a straddle design feature that can be alternated to for a safer reach of drums, while on pallets. Scale weighs drums to an accuracy of +/-0.5 pounds and includes (6) AA cell batteries.

Manuals

DCR-880 Owners Manual

Testing Certificates

DCR-880-H

DCR-880-H-DC

DCR-880-H-HP

DCR-880-H-HP-DC

DCR-880-H-SCL

DCR-880-M

DCR-SCALE

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DCR-880-H-DC

https://www.vestildocs.com/SDS/Vertical_Battery.pdf

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: DCR-880-H-HP-DC

Hydraulic Oil SDS Sheet for: DCR-880-H-HP-DC
