Vestil Manufacturing Corp Low Profile Stretch Wrap Machine
Vestil Manufacturing Corp Low Profile Stretch Wrap Machine

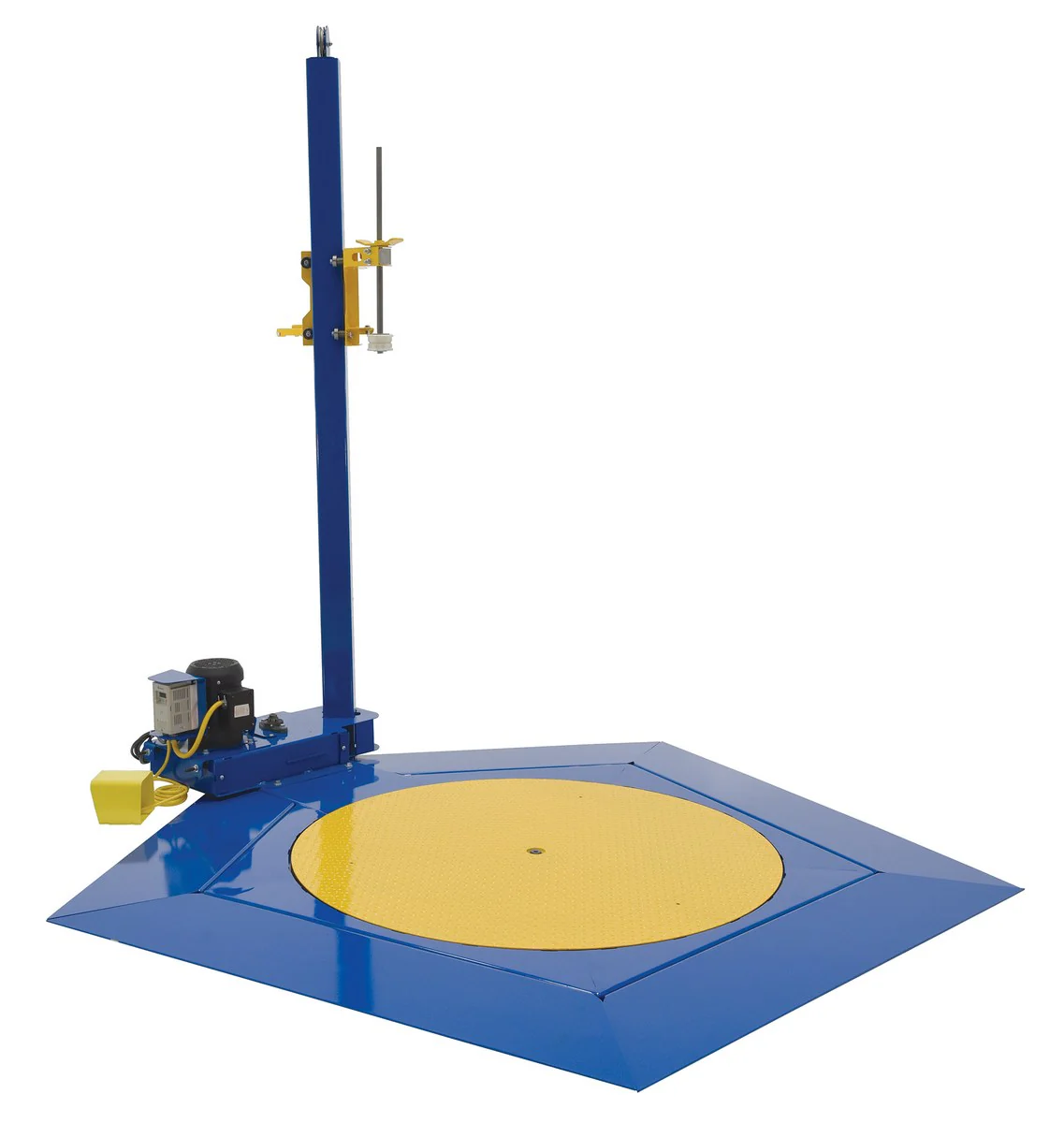

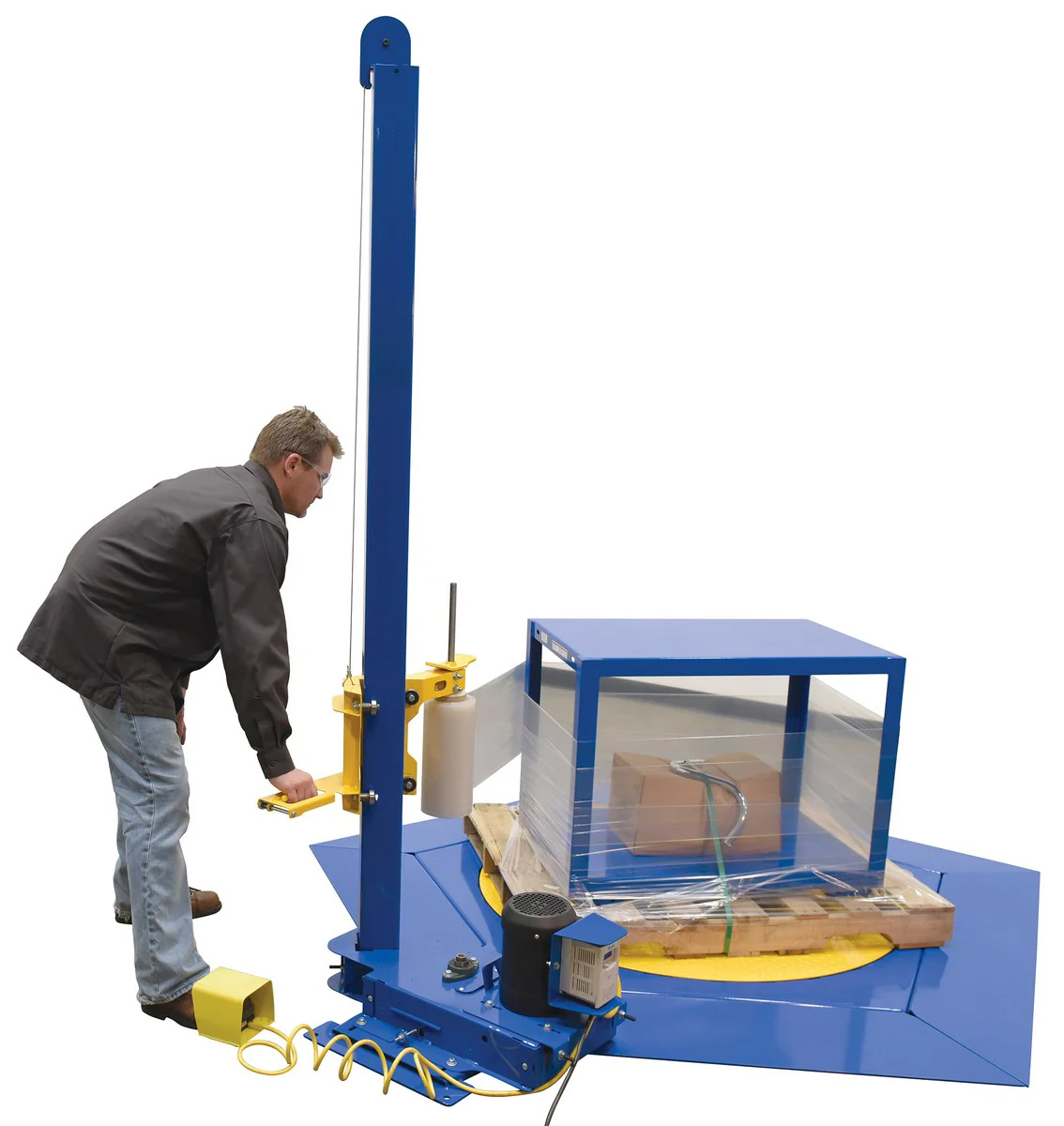

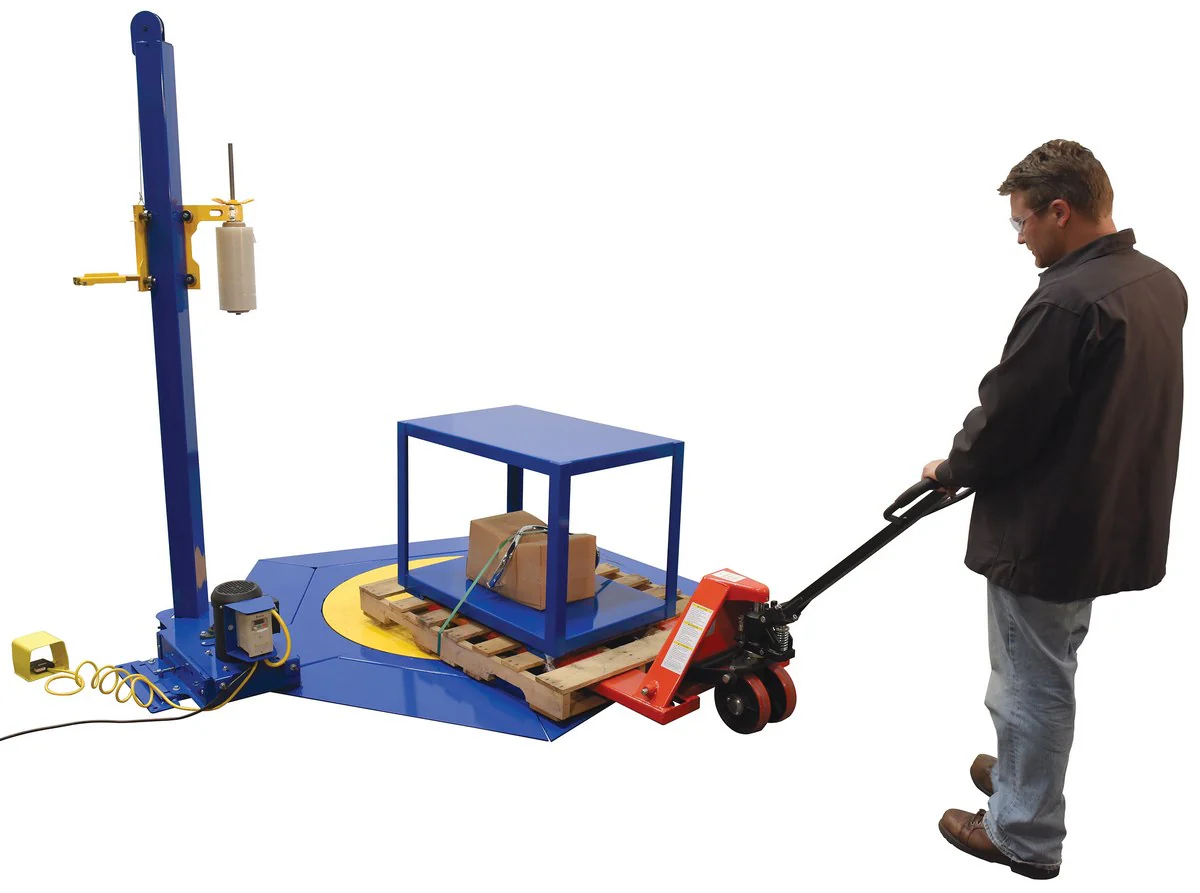

The Low Profile Stretch Wrap Machine features a thin-spin carousel with the added benefit of a stretch wrap machine with powered rotation. The rotation is controlled by a foot switch, while the power input has a variable AC motor that allows adjustable deck speed and includes soft start/stop. RPM is variable from 3 to 12. The loading and unloading is possible by the use of a manual or powered pallet truck. The unit has a built-in perimeter ramp and comes standard with a manual stretch wrap mast. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely, making film application fast and easy. Optional 115V, 1 phase AC powered mast option (PMO) includes hand control with up and down buttons. Maximum load is 64-11/16" in diameter (wrap height is 83-1/4" high).
- Approachable from all sides
- Minimizes surfaces change during transition
- Manually controlled for better positioning
- Large capacity for wrapping oversized products
Manuals
SWA-50, SWA-51-AR, SWA-70
Testing Certificates
SWA-51-AR5
Other PDF's
Low Profile Stretch Wrap Machine Mailing Brochure
*For Vestil products, a minimum purchase amount of $25 is required to place an order.*
